>> Male Branch Tee
Product Name -
Male Branch Tee
Product Description -

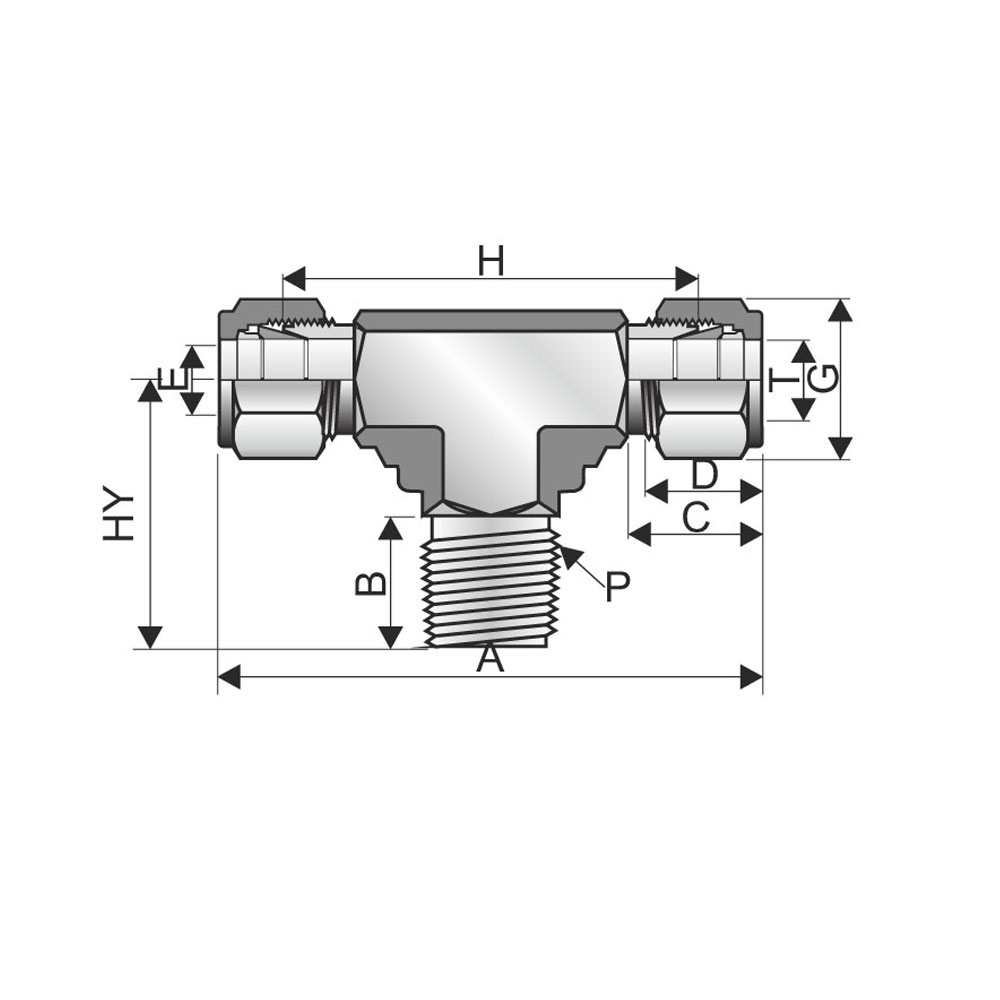

Male Branch Tee (Imperial x NPTM)
Part No.(HAVI)
Quantity
Tube OD (T) inch
Thread (P) NPT
A
Ax
B
C
D
E
F
G (Hex)
H
Hx
Hy
2MBT2N
1/8
1/8
1.86
0.93
0.38
0.6
0.5
0.09
9/16
7/16
1.34
0.67
0.7
2MBT4N
1/8
1/4
1.94
0.97
0.56
0.6
0.5
0.09
9/16
7/16
1.42
0.71
0.92
3MBT2N
3/16
1/8
1.92
0.96
0.38
0.63
0.54
0.12
9/16
7/16
1.4
0.7
0.7
4MBT2N
1/4
1/8
2.12
1.06
0.38
0.7
0.6
0.19
9/16
9/16
1.54
0.77
0.74
4MBT4N
1/4
1/4
2.12
1.06
0.56
0.7
0.6
0.19
9/16
9/16
1.54
0.77
0.92
5MBT2N
5/16
1/8
2.34
1.17
0.38
0.73
0.64
0.19
9/16
5/8
1.76
0.88
0.82
5MBT4N
5/16
1/4
2.34
1.17
0.56
0.73
0.64
0.19
9/16
5/8
1.76
0.88
1.01
6MBT4N
3/8
1/4
2.4
1.2
0.56
0.86
0.66
0.28
13/16
11/16
1.82
0.91
1
6MBT6N
3/8
3/8
2.62
1.31
0.56
0.76
0.66
0.28
13/16
11/16
2.04
1.02
1.11
8MBT6N
1/2
3/8
2.84
1.42
0.56
0.86
0.9
0.38
13/16
7/8
2.04
1.02
1.11
8MBT8N
1/2
1/2
2.84
1.42
0.75
0.86
0.9
0.41
13/16
7/8
2.04
1.02
1.3
12MBT12N
3/4
3/4
3.14
1.57
0.75
0.86
0.96
0.62
1-1/16
1-1/8
2.34
1.17
1.45
14MBT12N
7/8
3/4
3.52
1.76
0.75
0.86
1.02
0.62
1-3/8
1-1/4
2.72
1.36
1.5
16MBT12N
1
3/4
3.88
1.94
0.75
1.04
1.23
0.62
1-3/8
1-1/2
2.9
1.45
1.66
16MBT16N
1
1
3.88
1.94
0.94
1.04
1.23
0.88
1-3/8
1-1/2
2.9
1.45
1.84
×
