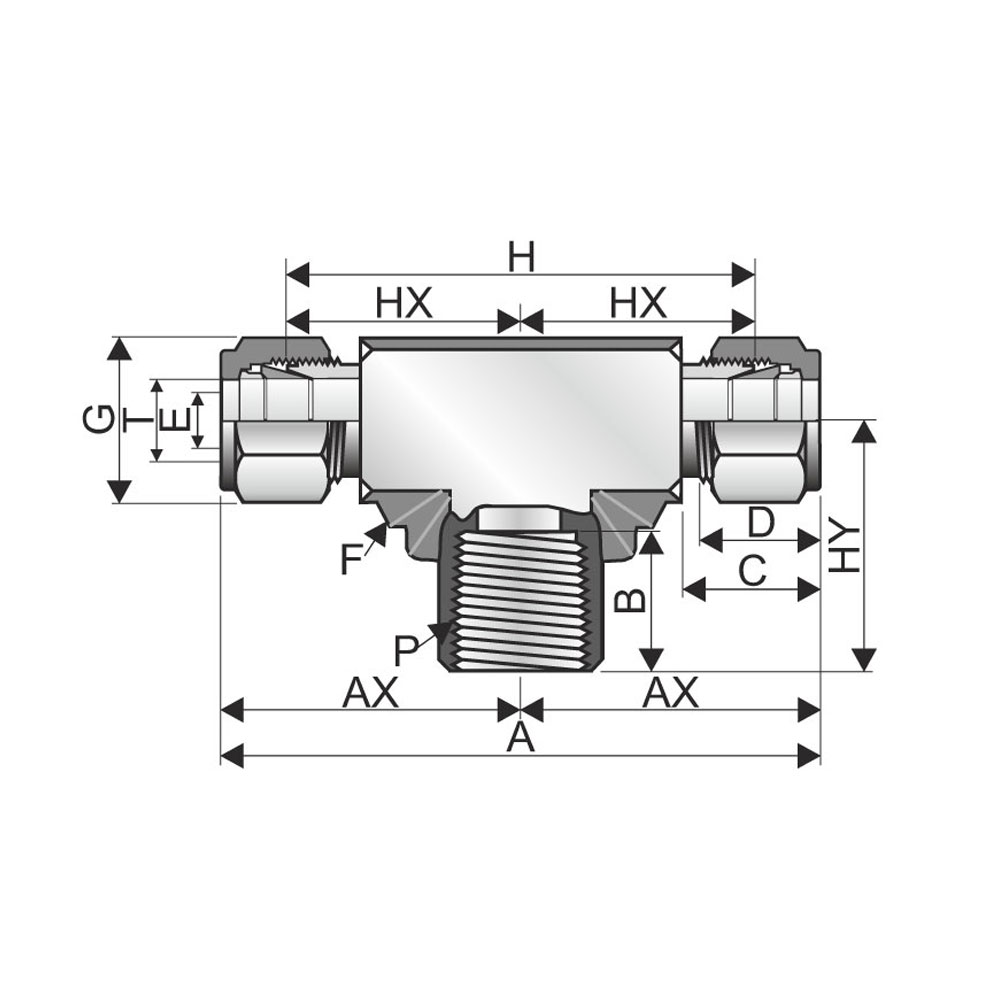

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Thread (P) NPT	A	Ax	B	C	D	E	F	G (Hex)	H	Hx	Hy
	6MFBT2N		6	1/8	53.9	27	10.4	17.7	15.3	4.8	9/16	14	39.1	19.6	19
	6MFBT4N		6	1/4	59.5	29.8	15	17.7	15.3	4.8	13/16	14	47.7	22.4	22.4
	8MFBT2N		8	1/8	59.7	29.9	10.4	18.6	16.2	6.4	13/16	16	47.7	22.4	19
	8MFBT4N		8	1/4	61.2	30.6	15	18.6	16.2	6.4	13/16	16	46.2	23.1	22.4
	10MFBT4N		10	1/4	67	33.5	15	19.5	17.2	7.9	13/16	19	51.8	25.9	22.4
	12MFBT2N		12	1/8	72	36	15	22	22.8	9.5	13/16	22	51.8	25.9	22.7
	12MFBT4N		12	1/4	72	36	15	22	22.8	9.5	13/16	22	51.8	25.9	22.4
	12MFBT6N		12	3/8	72	36	15	22	22.8	9.5	13/16	22	51.8	25.9	22.4
	12MFBT8N		12	1/2	77.6	38.8	19.8	22	22.8	9.5	1-1/16	22	57.4	28.7	28.5
	16MFBT8N		16	1/2	77.6	38.8	19.8	22	24.4	12.7	1-1/16	25	57.4	28.7	28.4
