Product Name -
Female Run Tee
Product Description -

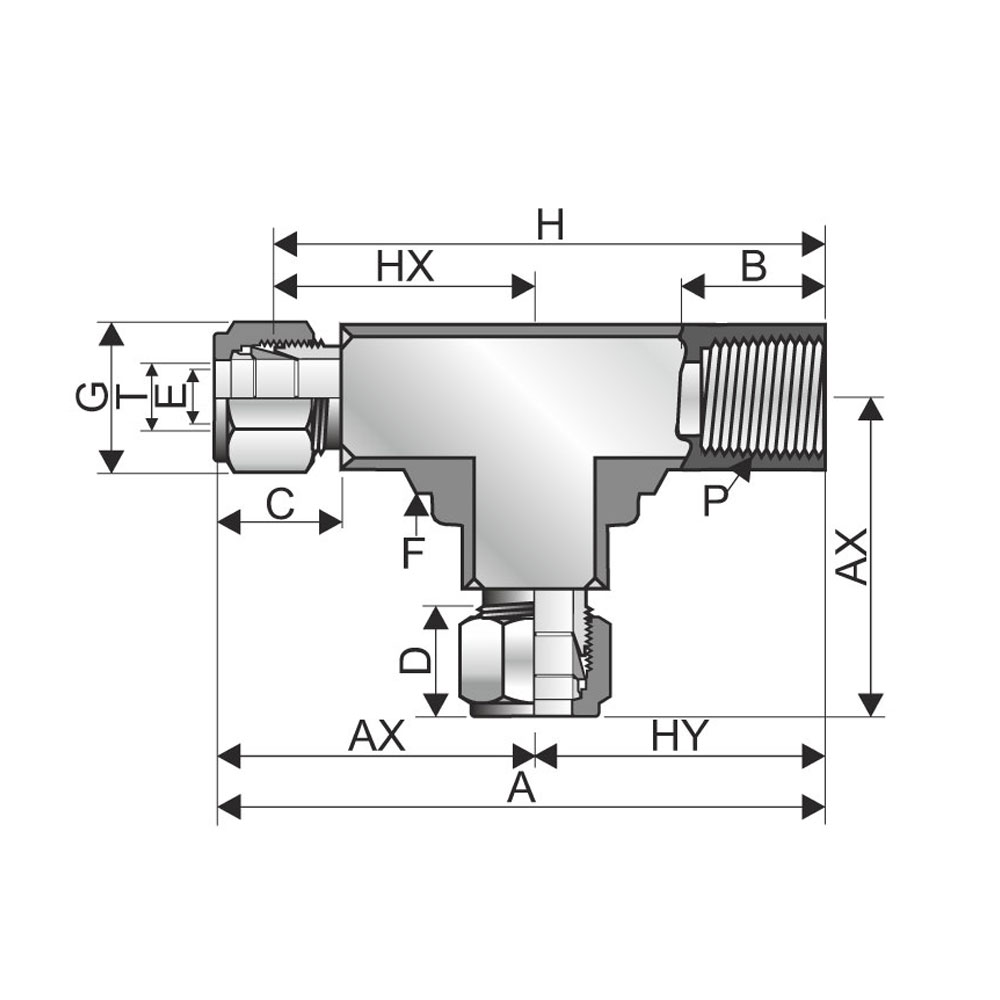

Female Run Tee (Imperial x NPTF)
Part No.(HAVI)
Quantity
Tube OD (T) inch
Thread (P) NPT
A
Ax
B
C
D
E
F
G (Hex)
H
Hx
Hy
2FRT2N
1/8
1/8
1.72
0.97
0.41
0.6
0.5
0.09
9/16
7/16
1.46
0.71
0.75
3FRT2N
3/16
1/8
1.76
1.01
0.41
0.6
0.5
0.09
9/16
7/16
1.5
0.75
0.75
4FRT2N
1/4
1/8
1.81
1.06
0.41
0.7
0.6
0.19
9/16
9/16
1.52
0.77
0.75
4FRT4N
1/4
1/4
2.05
1.17
0.59
0.7
0.6
0.19
11/16
9/16
1.76
0.88
0.88
5FRT2N
5/16
1/8
1.92
1.17
0.41
0.6
0.6
0.19
5/8
5/8
1.63
0.88
0.75
6FRT4N
3/8
1/4
2.11
1.23
0.59
0.76
0.66
0.28
13/16
13/16
1.82
0.94
0.88
8FRT4N
1/2
1/4
2.56
1.43
0.59
0.7
0.6
0.19
7/8
7/8
2.26
1.13
1.13
8FRT6N
1/2
3/8
2.3
1.42
0.59
0.86
0.9
0.41
7/8
7/8
1.9
1.02
0.88
8FRT8N
1/2
1/2
2.69
1.57
0.78
0.86
0.9
0.41
1-1/16
7/8
2.29
1.17
1.12
10FRT8N
5/8
1/2
2.66
1.53
0.78
0.86
0.9
0.41
1-1/16
1
2.26
1.13
1.13
12FRT12N
3/4
3/4
3.01
1.76
0.81
0.86
0.96
0.62
1-3/8
1-1/8
2.61
1.36
1.25
14FRT8N
7/8
1/2
3.01
1.76
0.78
0.86
0.9
0.41
1-3/8
1-1/4
2.61
1.36
1.25
14FRT12N
7/8
3/4
3.01
1.76
0.81
0.86
0.96
0.62
1-3/8
1-1/4
2.61
1.36
1.25
16FRT12N
1
3/4
3.18
1.93
0.81
1.04
1.23
0.88
1-3/8
1-1/2
2.7
1.45
1.25
16FRT16N
1
1
3.61
2.11
1
1.04
1.23
0.88
1-11/16
1-1/2
3.13
1.63
1.5
×
