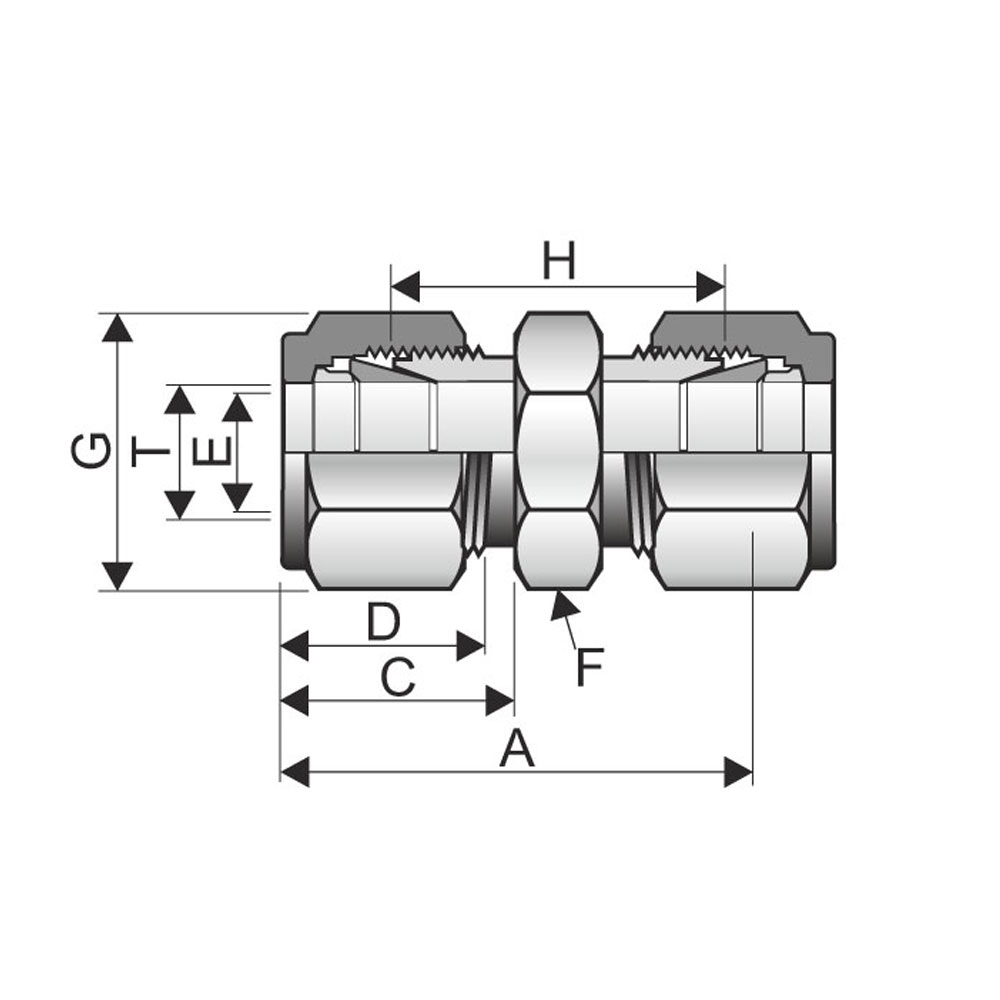

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Tube OD (T2) mm	A	B	C	D	E	F(Hex)	G	H
	2MU		2	2	35.6	15.3	12.9	12.9	1.7	11	11	22.4
	3MU		3	3	35.3	15.3	12.9	12.9	2.4	11	11	22.1
	4MU		4	4	37.3	16.1	13.7	13.7	2.4	11	11	24.1
	6MU		6	6	41	17.7	15.3	15.3	4.8	14	14	26.2
	8MU		8	8	43.2	18.6	16.2	16.2	6.4	16	16	28.2
	10MU		10	10	46.2	19.5	17.2	17.2	7.9	19	19	31
	12MU		12	12	51.2	22	22.8	22.8	9.5	22	22	31
	14MU		14	14	52	22	24.4	24.4	11.1	25	25	31.8
	15MU		15	15	52	22	24.4	24.4	11.9	25	25	31.8
	16MU		16	16	52	22	24.4	24.4	12.7	25	25	31.8
	18MU		18	18	53.5	22	24.4	24.4	15.1	27	30	33.3
	20MU		20	20	55	22	26	26	15.9	32	32	34.8
	22MU		22	22	55	22	26	26	18.3	32	32	34.8
	25MU		25	25	65	26.5	31.3	31.3	21.8	35	38	40.5
