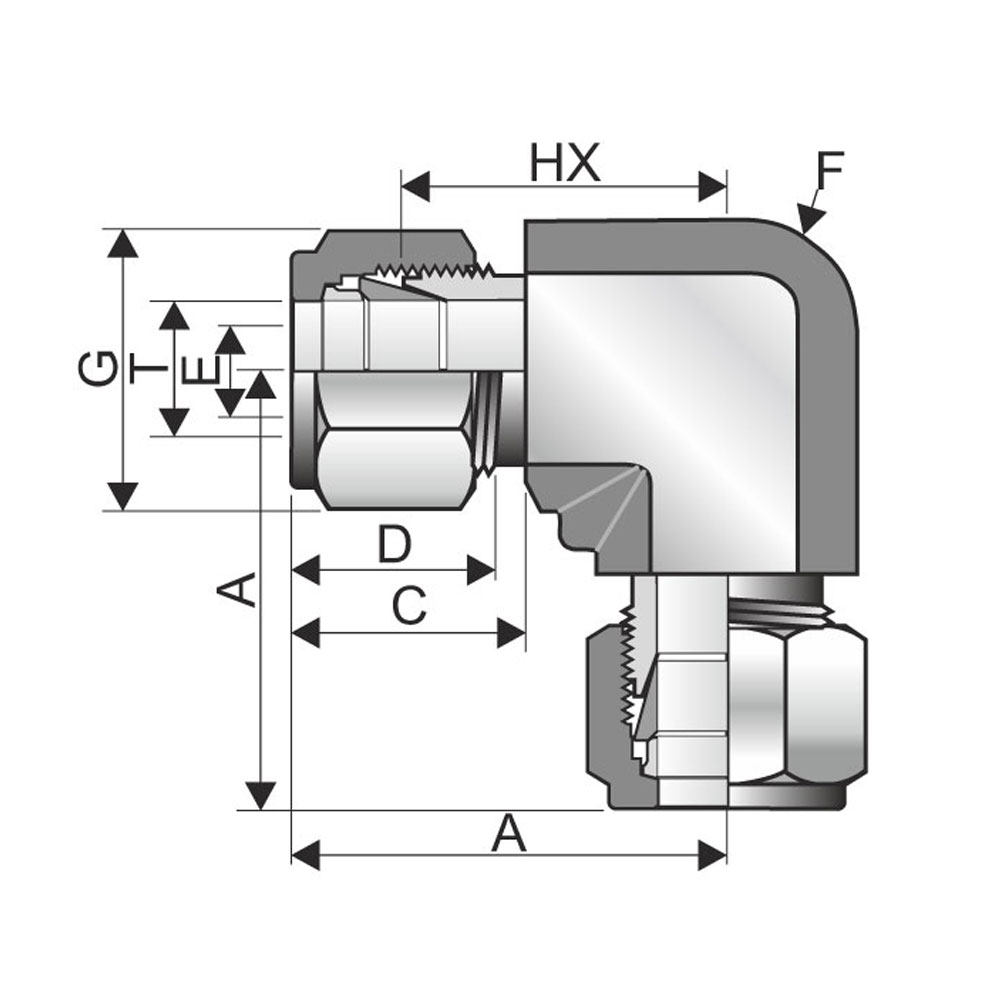

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Tube OD (T2) mm	A	C	D	E	F	G (Hex)	Hx
	3MUE		3	3	22.3	15.3	12.9	2.4	9/16	11	15.7
	4MUE		4	4	25.4	16.1	13.7	2.4	9/16	11	18.8
	6MUE		6	6	27	17.7	15.3	4.8	9/16	14	19.6
	8MUE		8	8	28.8	18.8	16.2	6.4	9/16	16	21.3
	10MUE		10	10	31.5	19.5	17.2	7.9	13/16	19	23.9
	12MUE		12	12	36	22	22.8	9.5	13/16	22	25.9
	14MUE		14	14	38	22	24.4	11.1	15/16	25	27.9
	15MUE		15	15	38.8	22	24.4	11.9	15/16	25	27.9
	16MUE		16	16	38	22	24.4	12.7	15/16	25	27.9
	18MUE		18	18	39.8	22	24.4	15.1	1-1/16	30	29.7
	20MUE		20	20	44.6	22	26	15.9	1-3/8	32	34.5
	22MUE		22	22	44.6	22	26	18.3	1-3/8	32	34.5
	25MUE		25	25	49.1	26.5	31.3	21.8	1-3/8	38	36.8
