Products

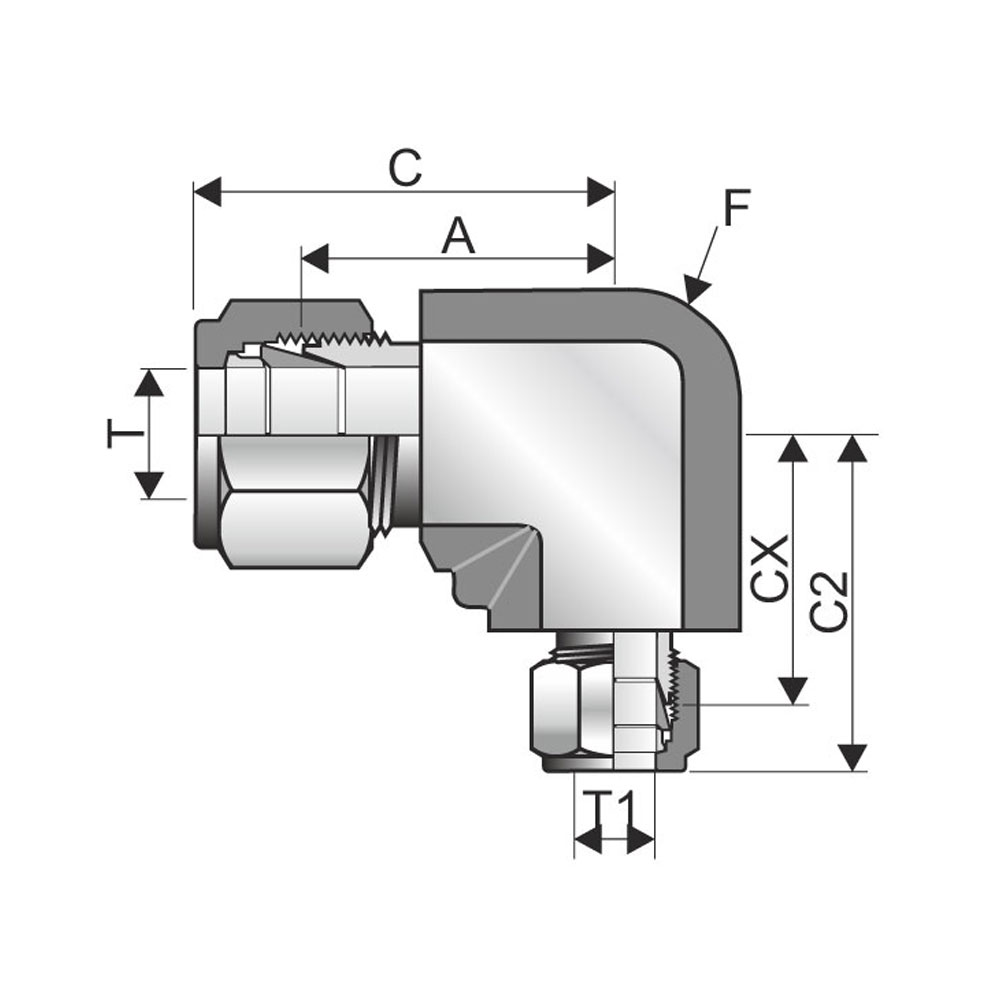

	Part No.(HAVI)	Quantity	Tube OD (T) inch	Tube OD (T2) inch	A	C	Cx	C2	F
	3RUE2		3/16	1/8	0.69	0.96	0.62	0.92	7/16
	4RUE2		1/4	1/8	0.77	1.06	0.7	0.96	9/16
	5RUE2		5/16	1/8	0.88	1.17	0.78	1.04	5/8
	5RUE4		5/16	1/4	0.88	1.17	0.85	1.14	5/8
	6RUE2		3/8	1/8	0.91	1.2	0.78	1.04	13/16
	6RUE4		3/8	1/4	0.91	1.2	0.85	1.09	13/16
	6RUE5		3/8	5/16	0.91	1.2	0.88	1.17	13/16
	8RUE4		1/2	1/4	1.02	1.42	0.96	1.25	13/16
	8RUE5		1/2	5/16	1.02	1.42	0.99	1.28	13/16
	8RUE6		1/2	3/8	1.02	1.42	1.02	1.31	13/16
	10RUE6		5/8	3/8	1.03	1.43	1.03	1.32	1
	10RUE8		5/8	1/2	1.03	1.43	1.03	1.43	1
	12RUE4		3/4	1/4	1.16	1.56	1.09	1.38	1-1/16
	12RUE6		3/4	3/8	1.16	1.56	1.16	1.45	1-1/16
	12RUE8		3/4	1/2	1.16	1.56	1.16	1.56	1-1/16
	14RUE4		7/8	1/4	1.36	1.76	1.22	1.51	1-3/8
	16RUE8		1	1/2	1.45	1.94	1.22	1.62	1-5/16
	16RUE12		1	3/4	1.45	1.94	1.36	1.76	1-3/8
