Products

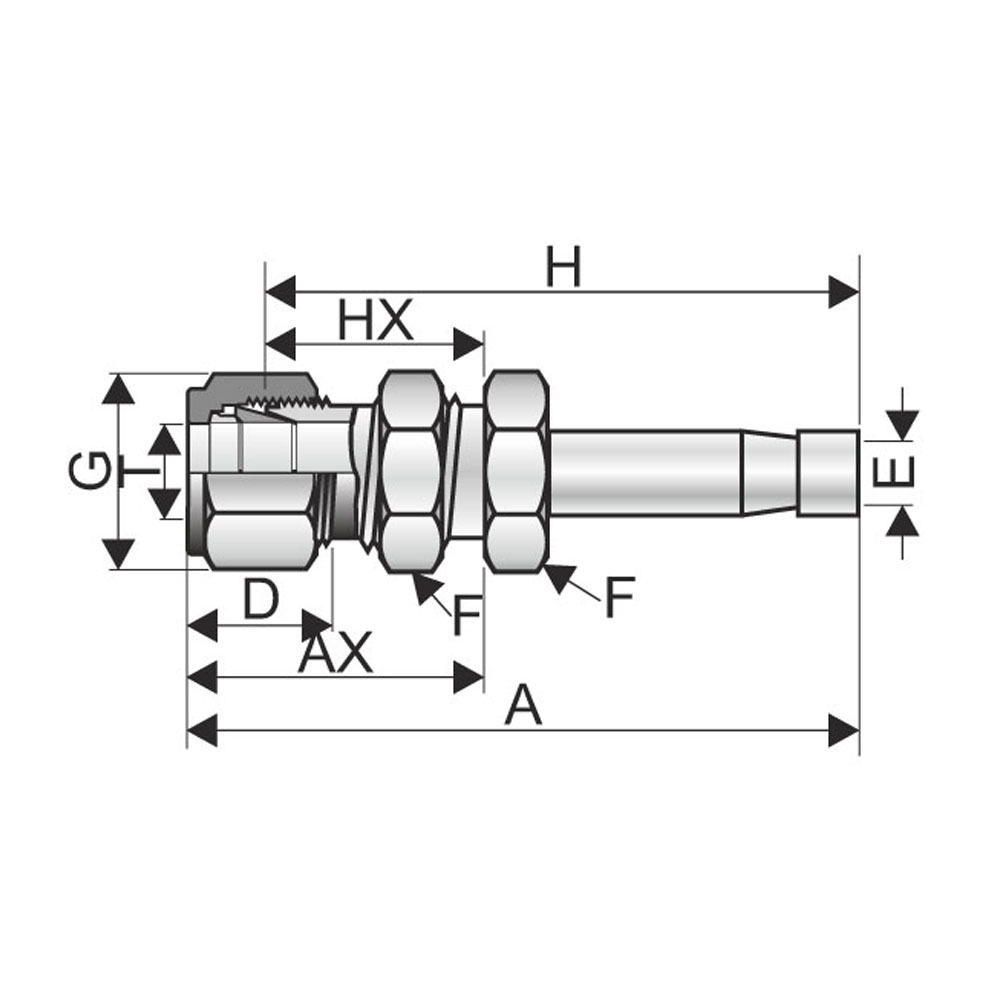

	Part No.(HAVI)	Quantity	Tube OD (T) inch	A	Ax	D	E	F(Hex)	G	H	Hx	Panel Hole	B.Head THK
	2BR		1/8	1.95	1.23	0.5	0.08	7/16	7/16	1.69	0.97	21/64	0.5
	4BR		1/4	2.2	1.32	0.6	0.19	9/16	9/16	1.91	1.03	29/64	0.4
	6BR		3/8	2.41	1.45	0.66	0.28	11/16	11/16	2.12	1.16	37/64	0.44
	8BR		1/2	2.87	1.65	0.9	0.39	7/8	7/8	2.47	1.25	49/64	0.5
	10BR		5/8	2.96	1.68	0.96	0.5	1	1	2.56	1.28	57/64	0.5
	16BR		1	3.95	2.26	1.23	0.8	1-1/2	1-1/2	3.47	1.78	1-21/64	0.75
