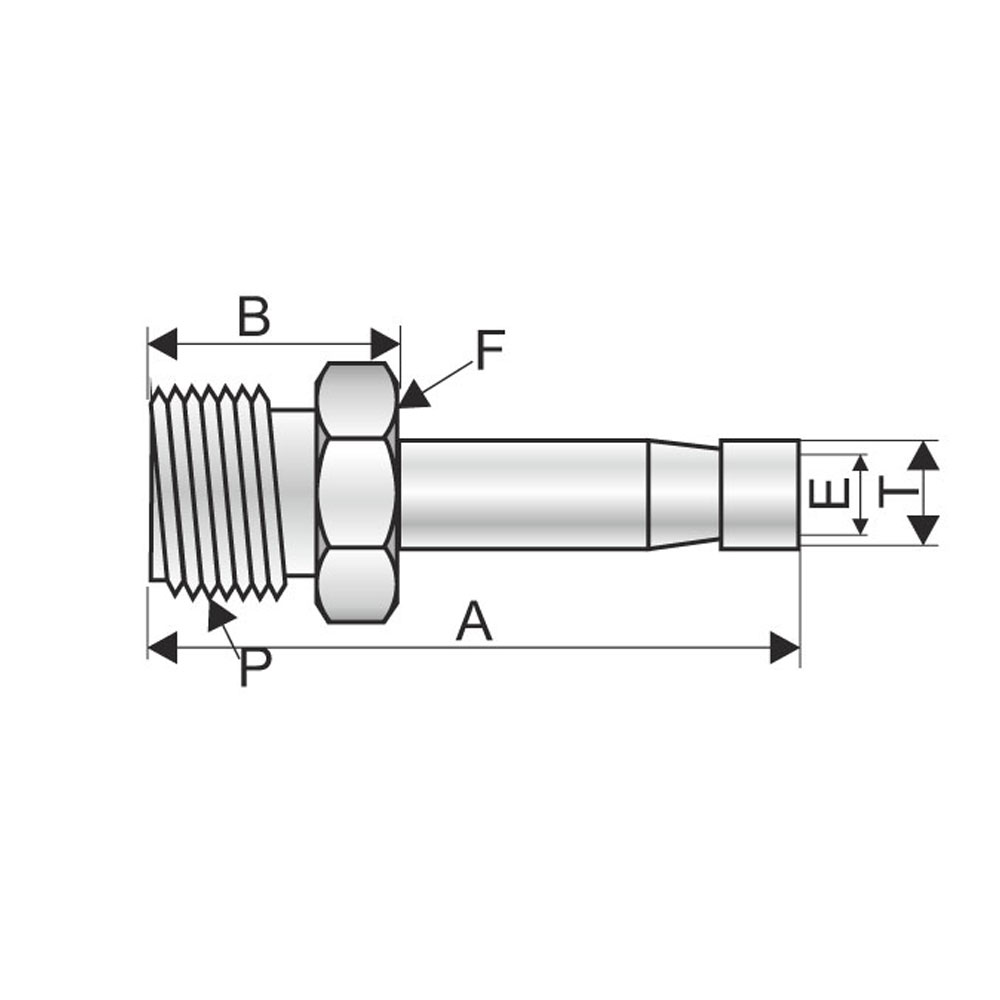

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Thread (P) NPT	A	B	E	F(Hex)
	3MMA2N		3	1/8	29.4	9.7	1.8	11
	4MMA2N		4	1/8	29.4	9.7	2	11
	6MMA2N		6	1/8	32.8	9.7	4.6	11
	6MMA4N		6	1/4	38.1	14.2	4.6	14
	6MMA6N		6	3/8	36.5	14.2	3	18
	6MMA8N		6	1/2	42.1	19.1	3	22
	8MMA4N		8	1/4	39.1	14.2	6.2	14
	8MMA6N		8	3/8	38.1	14.2	6.4	18
	10MMA4N		10	1/4	39.9	14.2	7.1	14
	10MMA6N		10	3/8	40.6	14.2	7.7	18
	10MMA8N		10	1/2	46.2	19.2	7.7	22
	12MMA4N		12	1/4	46.5	14.2	7.1	16
	12MMA6N		12	3/8	44.5	14.2	6.1	18
	12MMA8N		12	1/2	52	19.1	9.1	22
	16MMA8N		16	1/2	50.8	19.1	12.7	22
	16MMA12N		16	3/4	51.6	19.1	12.7	27
	18MMA8N		18	1/2	50.8	19.1	12.7	22
	18MMA12N		18	3/4	51.6	19.1	14	27
	20MMA8N		20	1/2	51.8	19.1	15	22
	20MMA12N		20	3/4	52.4	19.1	15.1	27
	25MMA16N		25	1	65.9	23.9	19.8	35
