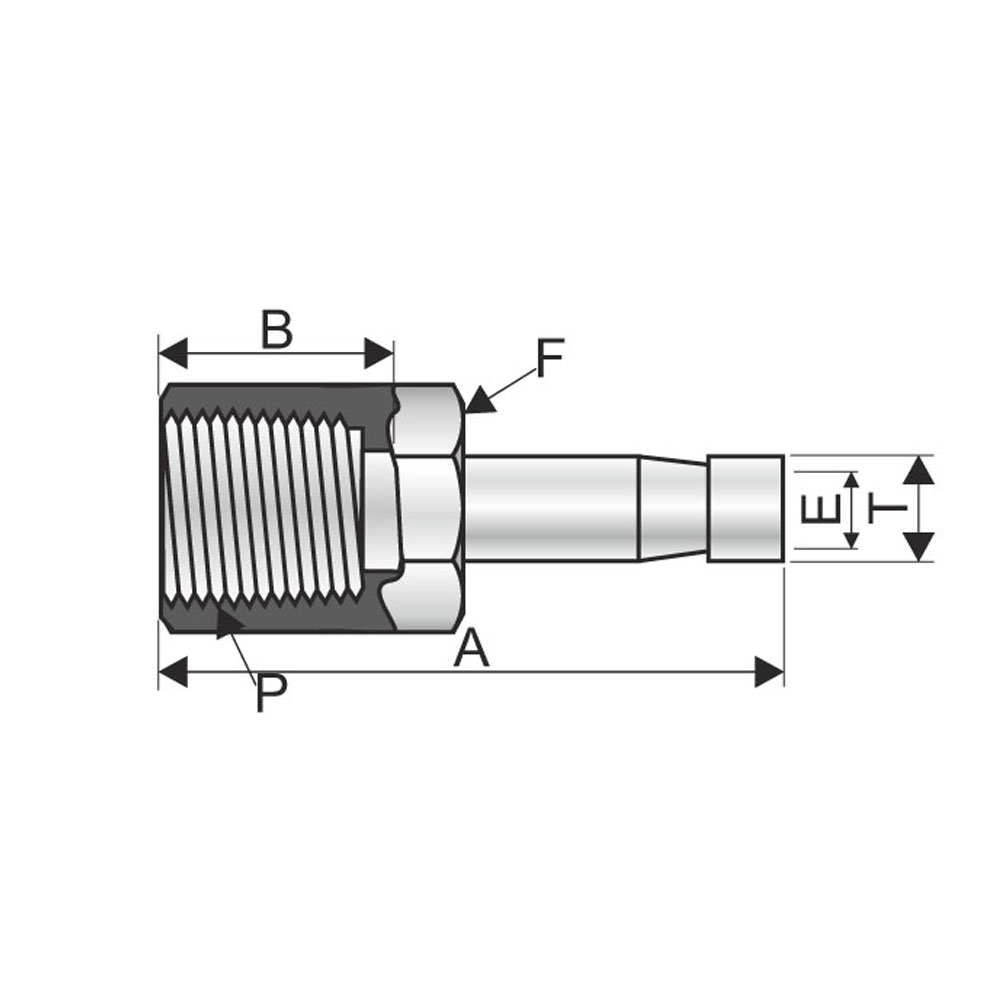

	Part No.(HAVI)	Quantity	Tube OD (T) inch	Thread (P) NPT	A	B	E	F(Hex)
	1FA2N		1/16	1/8	1.07	0.41	0.031	9/16
	2FA2N		1/8	1/8	1.24	0.41	0.09	9/16
	2FA4N		1/8	1/4	1.39	0.59	0.09	3/4
	3FA2N		3/16	1/8	1.25	0.41	0.116	9/16
	3FA4N		3/16	1/4	1.41	0.59	0.12	3/4
	4FA2N		1/4	1/8	1.3	0.41	0.19	9/16
	4FA4N		1/4	1/4	1.46	0.59	0.19	3/4
	4FA6N		1/4	3/8	1.55	0.59	0.19	7/8
	4FA8N		1/4	1/2	1.76	0.78	0.19	1-1/16
	5FA2N		5/16	1/8	1.34	0.41	0.219	9/16
	5FA4N		5/16	1/4	1.48	0.59	0.25	3/4
	5FA6N		5/16	3/8	1.59	0.59	0.281	7/8
	6FA2N		3/8	1/8	1.35	0.41	0.28	9/16
	6FA4N		3/8	1/4	1.5	0.59	0.28	3/4
	6FA6N		3/8	3/8	1.59	0.59	0.28	7/8
	6FA8N		3/8	1/2	1.84	0.78	0.28	1-1/16
	8FA4N		1/2	1/4	1.71	0.59	0.39	3/4
	8FA6N		1/2	3/8	1.79	0.59	0.39	7/8
	8FA8N		1/2	1/2	2.04	0.78	0.39	1-1/16
	10FA6N		5/8	3/8	1.86	0.59	0.469	7/8
	10FA8N		5/8	1/2	2.09	0.78	0.5	1-1/16
	12FA8N		3/4	1/2	2.08	0.78	0.59	1-1/16
	12FA12N		3/4	3/4	2.16	0.81	0.59	1-5/16
	12FA16N		3/4	1	2.3	1	0.59	1-5/8
	14FA12N		7/8	3/4	2.22	0.81	0.57	1-5/16
	16FA12N		1	3/4	2.39	0.81	0.8	1-5/16
	16FA16N		1	1	2.53	1	0.8	1-5/8
