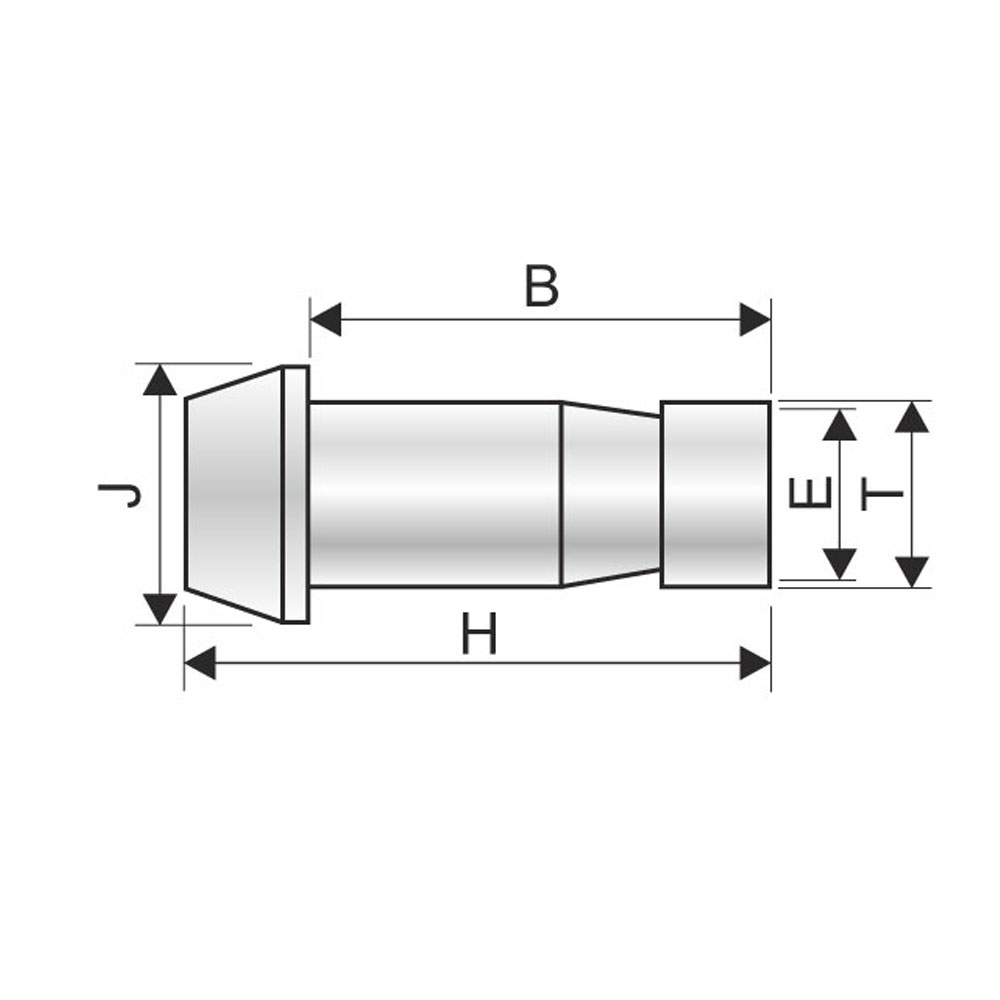

	Part No.(HAVI)	Quantity	Tube OD (T) mm	B	E	H	J
	3MPC		3	15.7	2.1	22.2	6
	6MPC		6	18.7	4.4	24.6	9
	8MPC		8	20	6.2	25.9	11
	1OMPC		10	20.2	8.2	26.1	13.1
	12MPC		12	26	9.1	35.8	15
	15MPC		15	27.6	12.7	37.4	19
	16MPC		16	27.6	12.7	37.4	19
	18MPC		18	27.6	13.9	37.4	21
	20MPC		20	29.2	15.1	38.9	23
	25MPC		25	34.5	19.8	48	28
