Product Name - Male Weld Connector

Product Description -
  • Male Weld Connector (Imperial)

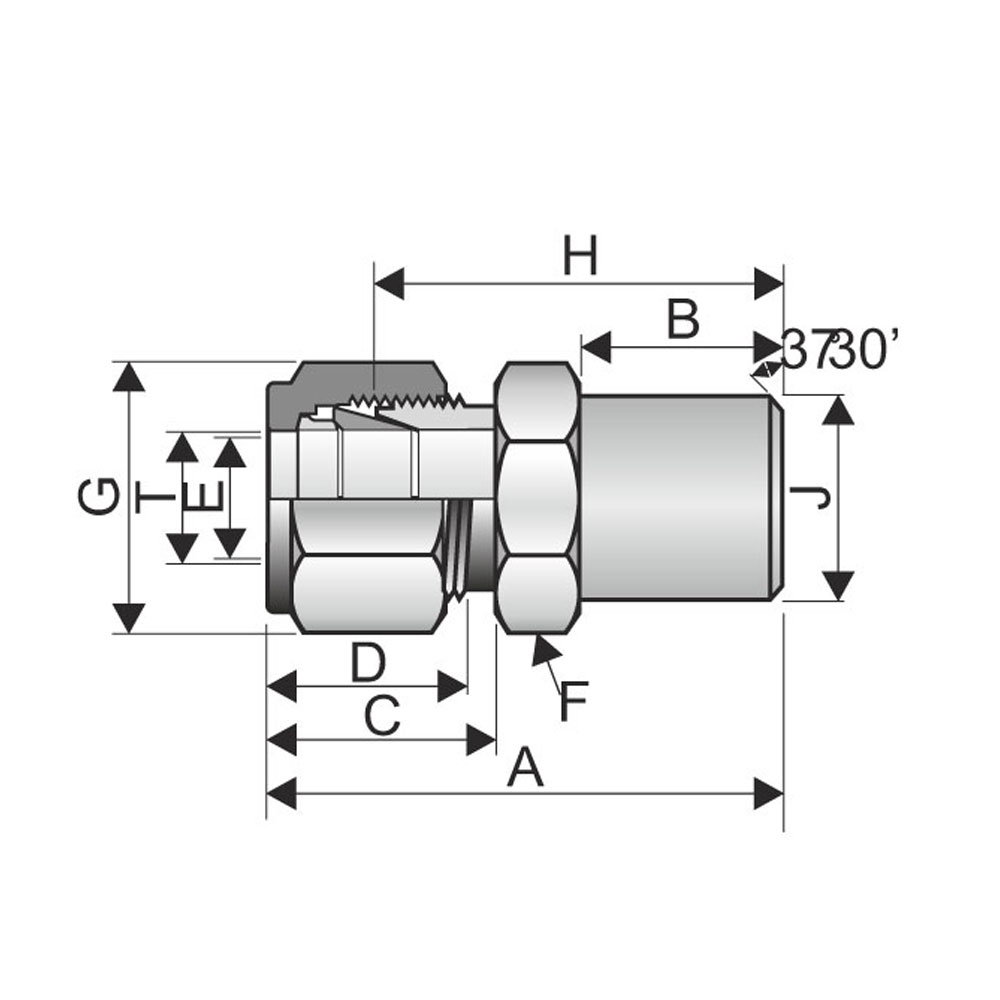

Part No.(HAVI) Quantity Tube OD (T) inch A B C D E F(Hex) G H J
2MWC2 1/8 1.2 0.38 0.6 0.5 0.09 7/16 7/16 0.94 0.405
3MWC2 3/16 1.23 0.38 0.63 0.54 0.12 7/16 7/16 0.97 0.405
4MWC2 1/4 1.29 0.38 0.7 0.6 0.19 9/16 9/16 1 0.405
4MWC4 1/4 1.49 0.56 0.7 0.6 0.19 9/16 9/16 1.2 0.54
5MWC2 5/16 1.34 0.38 0.73 0.64 0.2 9/16 5/8 1.05 0.405
5MWC4 5/16 1.52 0.56 0.73 0.64 0.25 9/16 5/8 1.23 0.54
6MWC4 3/8 1.57 0.56 0.76 0.66 0.28 5/8 11/16 1.28 0.54
6MWC6 3/8 1.57 0.56 0.76 0.66 0.28 11/16 11/16 1.28 0.675
6MWC8 3/8 1.82 0.75 0.76 0.66 0.28 7/8 11/16 1.53 0.84
6MWC12 3/8 1.88 0.75 0.76 0.66 0.28 1-1/16 11/16 1.59 1.05
8MWC6 1/2 1.71 0.56 0.86 0.9 0.41 13/16 7/8 1.31 0.675
8MWC8 1/2 1.93 0.75 0.86 0.9 0.41 7/8 7/8 1.53 0.84
8MWC12 1/2 1.99 0.75 0.86 0.9 0.41 1-1/16 7/8 1.59 1.05
10MWC8 5/8 1.93 0.75 0.86 0.96 0.5 15/16 1 1.53 0.84
12MWC12 3/4 1.99 0.75 0.86 0.96 0.62 1-1/16 1-1/8 1.59 1.05
16MWC16 1 2.45 0.94 1.04 1.23 0.88 1-3/8 1-1/2 1.97 1.315
