Product Name - LPBV Series - Low Pressure Panel Mounted Ball Valve, 1500 psi

Product Description -
  • HAVI LPBV Series Valves are Low Pressure Panel Mounted Ball Valves used for ON/OFF of flow just by turning the handle Quarter turn.
Product Feature -
  • High Flow capacity in Compact size Valves.
  • Balls are Blow out proof.
  • 100% factory Tested.
  • Super finish Ball for effective sealing.
  • Working pressure of 1500psi & 3000psi.
  • Available in 2 Way, 3 Way and 4 Way configurations.

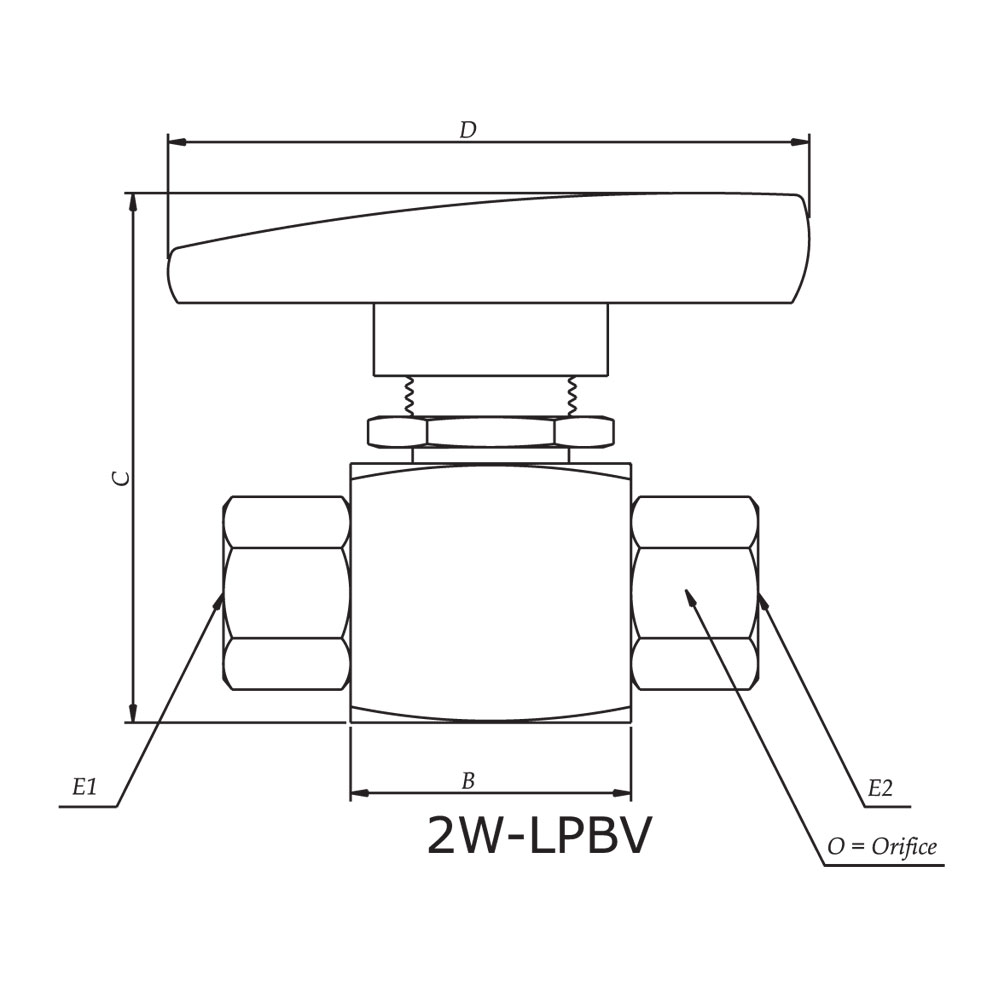

Part No.(HAVI) Quantity E1 E2 NPTF NPTF2 Thread (P) NPT Thread (P) NPT2 A B C D O-Orifice
LPBV-2W-4T 1/4"T 1/4"T 72 25 53 47 6
LPBV-2W-6T 3/8"T 3/8"T 77 25 53 47 6
LPBV-2W-8T 1/2"T 1/2"T 91 32 58 60 10.3
LPBV-2W-4F 1/4" 1/4" 56 25 53 47 6
LPBV-2W-6F 3/8" 3/8" 60 25 53 47 6
LPBV-2W-8F 1/2" 1/2" 75 32 58 60 10.3
LPBV-2W-4NM 1/4" 1/4" 65 25 53 47 6
LPBV-2W-6NM 3/8" 3/8" 67 25 53 47 6
LPBV-2W-8NM 1/2" 1/2" 84 32 58 60 10.3
