Product Name - 4MMVA - 4 Valve Modular Manifold System
Product Description - - HAVI Modular Mounting Manifolds are specifically designed with butterfly mounting arrangement which is compatible with the Shell speciation for Process Instrumentation. A standard series of 2 Valve & 4 Valve manifolds for pressure measurement. The Instrument Manifolds provide Isolate & Drain function for local instrument or indicator mounting.? Hydrostatic Test certificate along with complete chemical & physical material certificates. The main distinction of MMV series is that it eliminates the need for extra mounting accessories & reduces pipe work on site as these specially designed Manifolds can be easily assembled to a standard mounting plate
Product Feature - - Instrument mounting face in accordance with DIN 19213.
- Cast Manifold body CF8M/ASTM A351

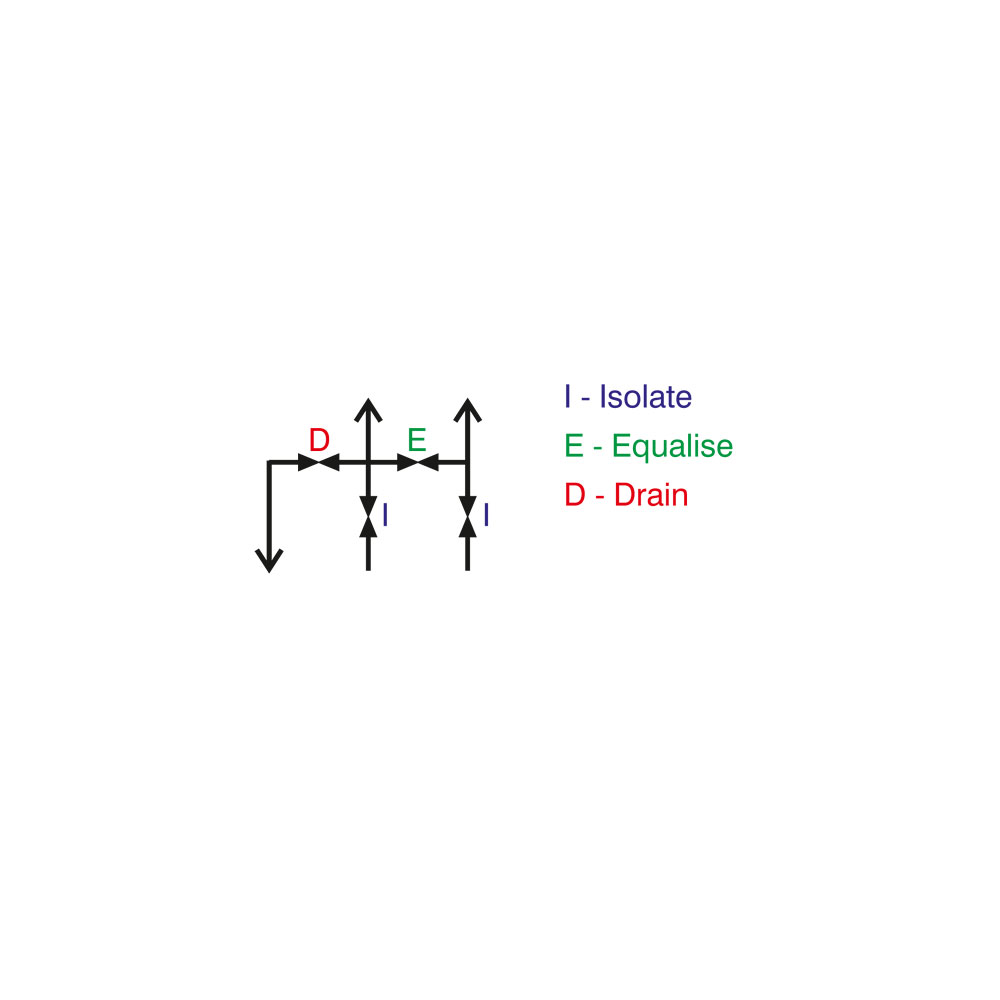

- 2 Isolation, 1 Drain, 1 Equalise
- Directly mounted on transmitter at a center distance of 54.00 mm
- Supplied along with Mounting Bolts, Seals and Nut
- Anti Tamper Drain and Equalise Bonnets
