Product Name - Male Connector (JIC x SAEO)

Product Description -
  • JIC Male Connector - (SAE 070120) (For Metric Tubing)

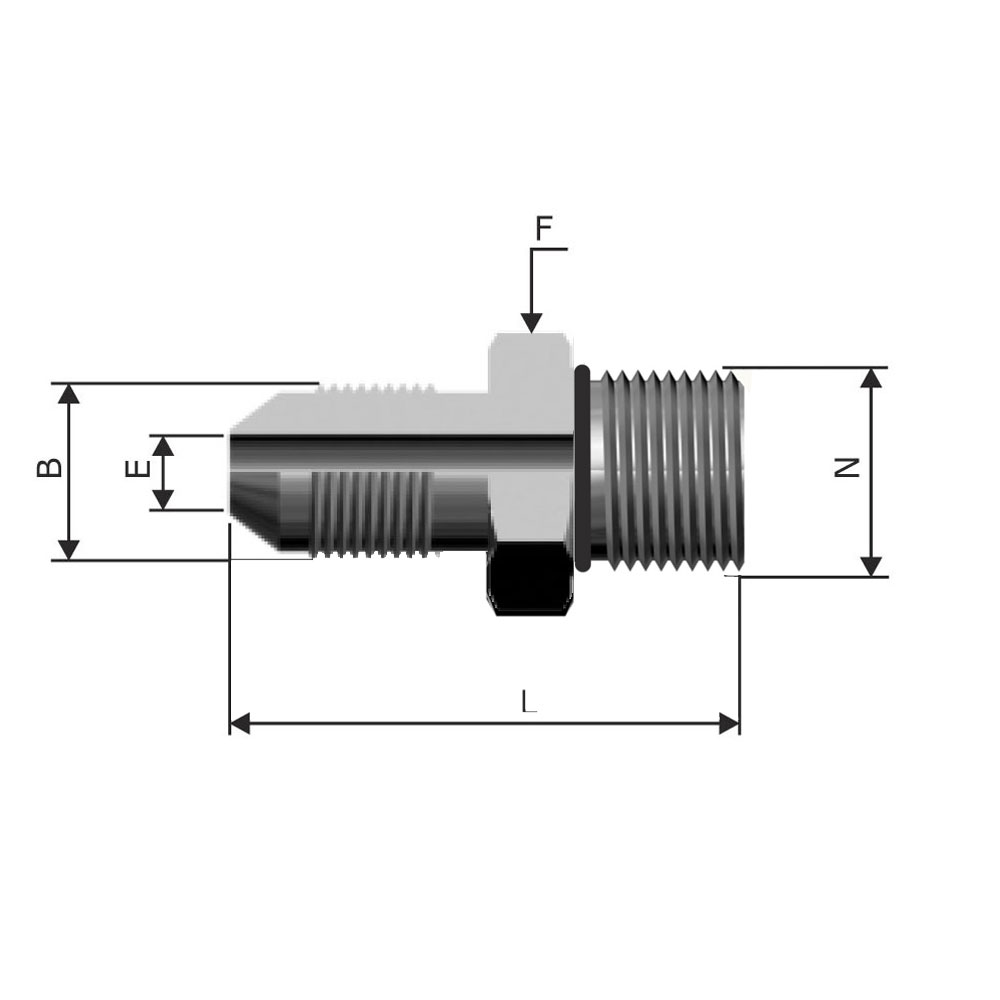

Part No.(HAVI) Quantity Tube OD (T) mm B(UNF) E F(Hex) L1 M (SAE/MS Straight Thread)
6MJ-MC-7SAEO 6 7/16x20 4.4 9/16 31.2 7/16x20
6MJ-MC-8SAEO 6 7/16x20 4.4 5/8 31.2 1/2x20
6MJ-MC-9SAEO 6 7/16x20 4.4 11/16 33 9/16x18
6MJ-MC-12SAEO 6 7/16x20 4.4 7/8 34.8 3/4x16
8MJ-MC-8SAEO 8 1/2x20 6 5/8 31.2 1/2x20
10MJ-MC-9SAEO 10 9/16x18 7.5 11/16 33 9/16x18
10MJ-MC-12SAEO 10 9/16x18 7.5 7/8 35.1 3/4x16
10MJ-MC-14SAEO 10 9/16x18 7.5 1 38.1 7/8x14
12MJ-MC-12SAEO 12 3/4x16 9.9 7/8 37.6 3/4x16
12MJ-MC-9SAEO 12 3/4x16 9.9 13/16 36.6 9/16x18
12MJ-MC-14SAEO 12 3/4x16 9.9 1 40.6 7/8x14
12MJ-MC-17SAEO 12 3/4x16 9.9 1-1/4 44.7 1-1/16x12
16MJ-MC-14SAEO 16 7/8x14 12.3 1 43.2 7/8x14
16MJ-MC-12SAEO 16 7/8x14 12.3 15/16 40.6 3/4x16
16MJ-MC-17SAEO 16 7/8x14 12.3 1-1/4 47.2 1-1/16x12
18MJ-MC-17SAEO 18 1-1/16x12 15.5 1-1/4 50 1-1/16x12
18MJ-MC-12SAEO 18 1-1/16x12 10.7 1-1/8 45.2 3/4x16
18MJ-MC-14SAEO 18 1-1/16x12 12.7 1-1/8 46.4 7/8x14
18MJ-MC-21SAEO 18 1-1/16x12 15.5 1-1/2 50.8 1-5/16x12
20MJ-MC-19SAEO 20 1-3/16x12 18.3 1-3/8 50.5 1-3/16x12
20MJ-MC-21SAEO 20 1-3/16x12 18.3 1-1/2 51.3 1-5/16x12
25MJ-MC-21SAEO 25 1-5/16x12 21.5 1-1/2 51.8 1-5/16x12
25MJ-MC-17SAEO 25 1-5/16x12 16.6 1-3/8 51.1 1-1/16x12
25MJ-MC-19SAEO 25 1-5/16x12 18.3 1-3/8 51.8 1-3/16x12
