Product Name - Male Elbow (JIC x NPTM)

Product Description -

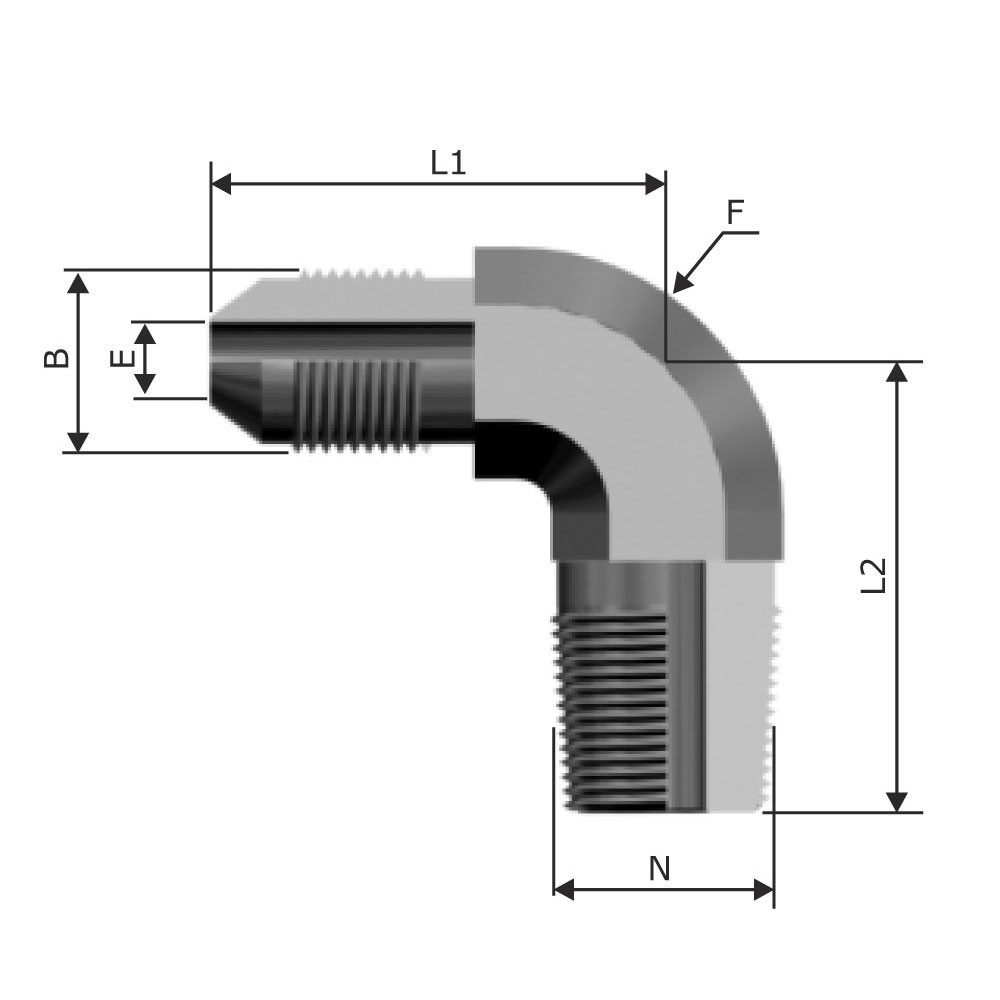

  • Male Elbow (JIC x NPTM) - (SAE 070202) (For Imperial Tube)

Part No.(HAVI) Quantity Tube OD (T) inch Thread (P) NPT B(UNF) E F(Hex) L1 L2
2J-ME-2N 1/8 1/8 5/16x24 0.062 7/16 0.77 0.72
3J-ME-2N 3/16 1/8 3/8x24 0.125 7/16 0.83 0.72
4J-ME-2N 1/4 1/8 7/16x20 0.172 1/2 0.89 0.78
4J-ME-4N 1/4 1/4 7/16x20 0.172 9/16 1.06 1.09
5J-ME-2N 5/16 1/8 1/2x20 0.19 9/16 0.95 0.78
5J-ME-4N 5/16 1/4 1/2x20 0.234 9/16 1.06 1.09
6J-ME-2N 3/8 1/8 9/16x18 0.19 5/8 1.06 0.9
6J-ME-4N 3/8 1/4 9/16x18 0.28 5/8 1.06 1.09
6J-ME-6N 3/8 3/8 9/16x18 0.297 11/16 1.14 1.22
6J-ME-8N 3/8 1/2 9/16x18 0.297 7/8 1.23 1.47
8J-ME-4N 1/2 1/4 3/4x16 0.28 13/16 1.25 1.22
8J-ME-6N 1/2 3/8 3/4x16 0.38 13/16 1.25 1.22
8J-ME-8N 1/2 1/2 3/4x16 0.391 7/8 1.33 1.47
8J-ME-12N 1/2 3/4 3/4x16 0.391 1-1/8 1.42 1.59
10J-ME-6N 5/8 3/8 7/8x14 0.38 15/16 1.45 1.28
10J-ME-8N 5/8 1/2 7/8x14 0.47 15/16 1.45 1.47
10J-ME-12N 5/8 3/4 7/8x14 0.484 1-1/8 1.53 1.59
12J-ME-8N 3/4 1/2 1-1/16x12 0.47 1-1/8 1.66 1.59
12J-ME-12N 3/4 3/4 1-1/16x12 0.609 1-1/8 1.66 1.59
14J-ME-12N 7/8 3/4 1-3/16x12 0.719 1-1/4 1.8 1.69
16J-ME-12N 1 3/4 1-5/16x12 0.719 1-3/8 1.81 1.78
16J-ME-16N 1 1 1-5/16x12 0.844 1-3/8 1.81 1.97
