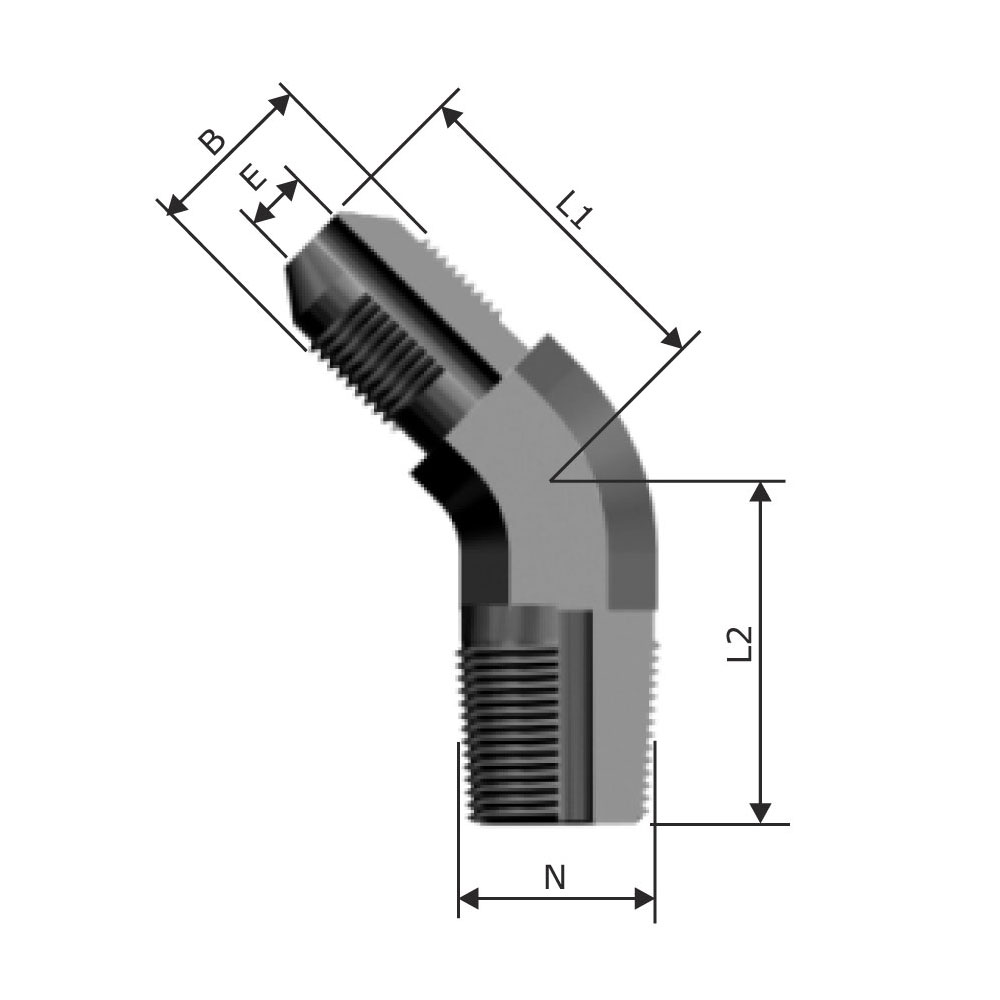

	Part No.(HAVI)	Quantity	Tube OD (T) inch	Thread (P) NPT	B(UNF)	E	F(Hex)	L1	L2
	2J-45ME-2N		1/8	1/8	5/16x24	0.062	7/16	0.69	0.52
	3J-45ME-2N		3/16	1/8	3/8x24	0.125	7/16	0.69	0.52
	4J-45ME-2N		1/4	1/8	7/16x20	0.172	1/2	0.72	0.52
	4J-45ME-4N		1/4	1/4	7/16x20	0.172	9/16	0.72	0.64
	5J-45ME-2N		5/16	1/8	1/2x20	0.19	9/16	0.77	0.52
	5J-45ME-4N		5/16	1/4	1/2x20	0.234	9/16	0.77	0.64
	6J-45ME-2N		3/8	1/8	9/16x18	0.19	5/8	0.83	0.52
	6J-45ME-4N		3/8	1/4	9/16x18	0.28	5/8	0.83	0.64
	6J-45ME-6N		3/8	3/8	9/16x18	0.297	11/16	0.83	0.86
	6J-45ME-8N		3/8	1/2	9/16x18	0.297	7/8	0.83	0.95
	8J-45ME-4N		1/2	1/4	3/4x16	0.28	13/16	0.98	0.64
	8J-45ME-6N		1/2	3/8	3/4x16	0.38	13/16	0.98	0.86
	8J-45ME-8N		1/2	1/2	3/4x16	0.391	7/8	0.98	0.95
	8J-45ME-12N		1/2	3/4	3/4x16	0.391	1-1/8	0.98	1.2
	10J-45ME-6N		5/8	3/8	7/8x14	0.38	15/16	1.11	0.86
	10J-45ME-8N		5/8	1/2	7/8x14	0.47	15/16	1.11	0.95
	10J-45ME-12N		5/8	3/4	7/8x14	0.484	1-1/8	1.11	1.2
	12J-45ME-8N		3/4	1/2	1-1/16x12	0.47	1-1/8	1.28	0.95
	12J-45ME-12N		3/4	3/4	1-1/16x12	0.609	1-1/8	1.28	1.2
	14J-45ME-12N		7/8	3/4	1-3/16x12	0.719	1-1/4	1.45	1.2
	16J-45ME-12N		1	3/4	1-5/16x12	0.719	1-3/8	1.47	1.2
	16J-45ME-16N		1	1	1-5/16x12	0.844	1-3/8	1.47	1.48
