Product Name -
Union Elbow (JIC x JIC)
Product Description -

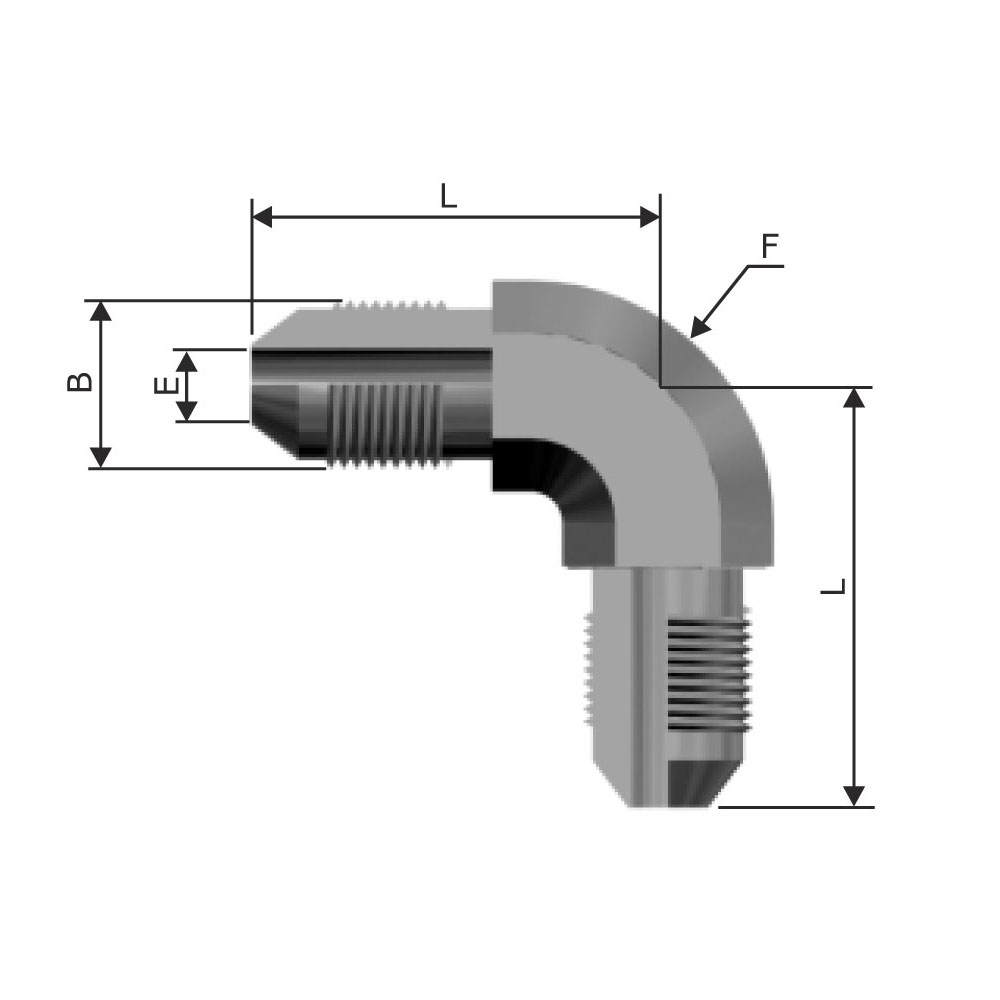

Union Elbow (JIC x JIC) - (SAE 070201) (For Imperial Tube)
Part No.(HAVI)
Quantity
Tube OD (T) inch
B(UNF)
E
F(Hex)
L
2J-UE
1/8
5/16x24
0.062
3/8
0.77
3J-UE
3/16
3/8x24
0.125
7/16
0.83
4J-UE
1/4
7/16x20
0.172
1/2
0.89
5J-UE
5/16
1/2x20
0.234
9/16
0.95
6J-UE
3/8
9/16x18
0.297
5/8
1.06
8J-UE
1/2
3/4x16
0.391
13/16
1.25
10J-UE
5/8
7/8x14
0.484
15/16
1.45
12J-UE
3/4
1-1/16x12
0.609
1-1/8
1.66
14J-UE
7/8
1-3/16x12
0.719
1-1/4
1.73
16J-UE
1
1-5/16x12
0.844
1-3/8
1.81
×
