Product Name - Union Cross (JIC x JIC x JIC x JIC)

Product Description -
  • Union Cross (JIC x JIC x JIC x JIC) - (SAE 070501) (For Imperial Tube)

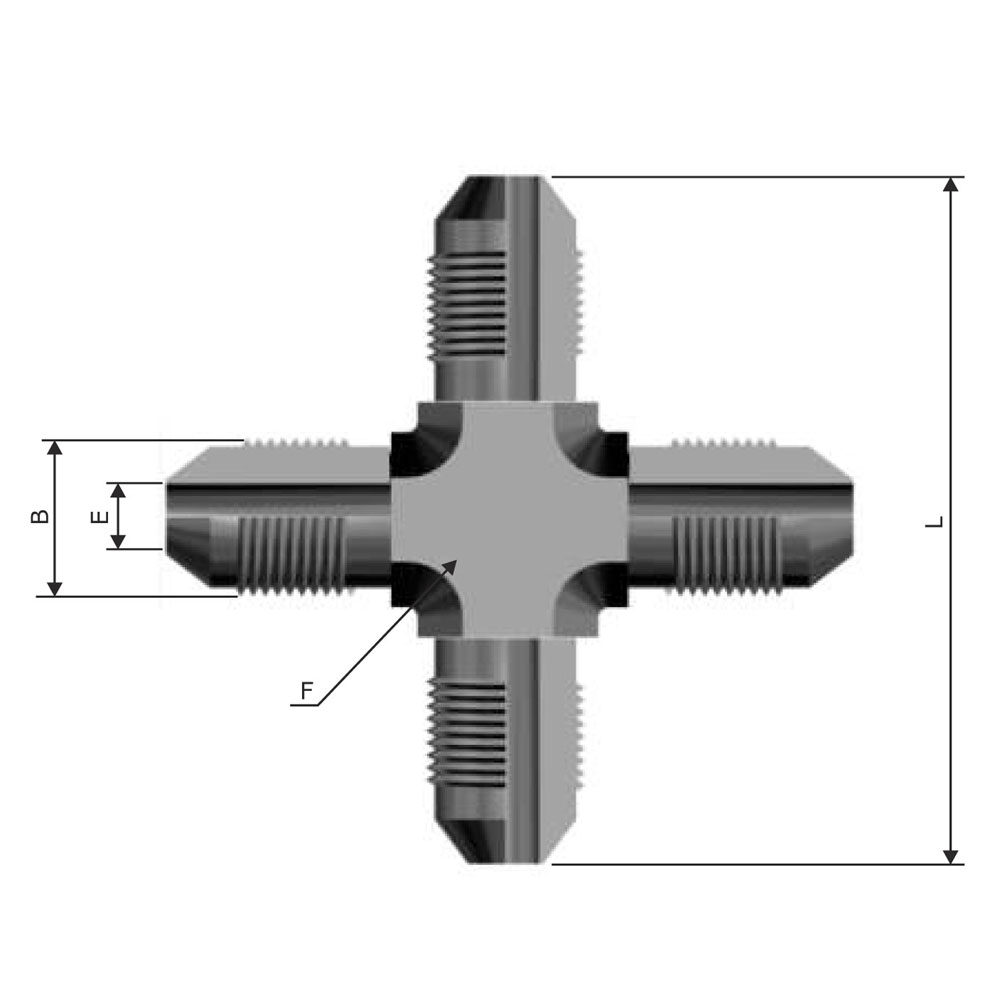

Part No.(HAVI) Quantity Tube OD (T) inch B(UNF) E F(Hex) L
2J-UC 1/8 5/16x24 0.062 3/8 0.77
3J-UC 3/16 3/8x24 0.125 7/16 0.83
4J-UC 1/4 7/16x20 0.172 1/2 0.89
5J-UC 5/16 1/2x20 0.234 9/16 0.95
6J-UC 3/8 9/16x18 0.297 5/8 1.06
8J-UC 1/2 3/4x16 0.391 13/16 1.25
10J-UC 5/8 7/8x14 0.484 15/16 1.45
12J-UC 3/4 1-1/16x12 0.609 1-1/8 1.66
14J-UC 7/8 1-3/16x12 0.719 1-1/4 1.73
16J-UC 1 1-5/16x12 0.844 1-3/8 1.81
