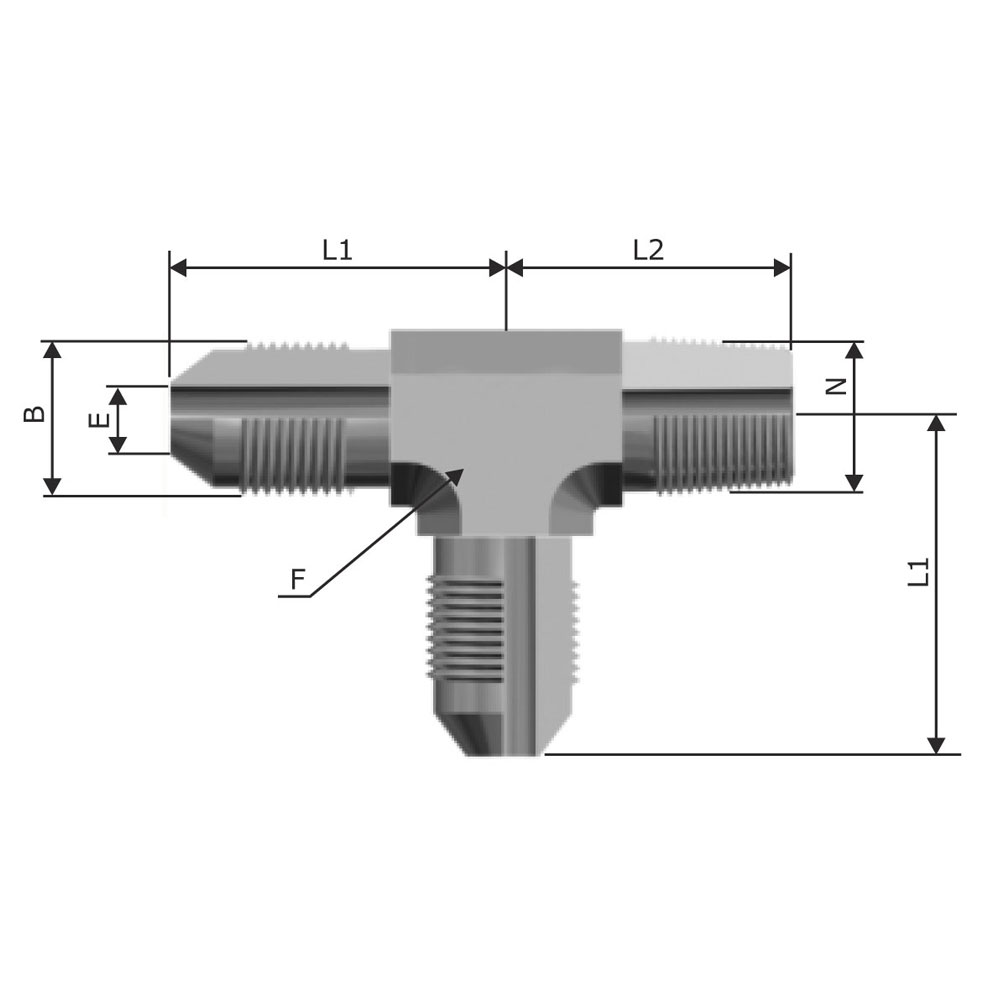

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Thread (P) NPT	B(UNF)	E	F(Hex)	L1	L2
	6MJ-MRT-2N		6	1/8	7/16x20	4.4	1/2	22.6	19.8
	6MJ-MRT-4N		6	1/4	7/16x20	4.4	9/16	26.9	27.7
	8MJ-MRT-2N		8	1/8	1/2x20	4.8	9/16	24.1	19.8
	8MJ-MRT-4N		8	1/4	1/2x20	6	9/16	26.9	27.7
	10MJ-MRT-2N		10	1/8	9/16x18	4.8	5/8	26.9	22.8
	10MJ-MRT-4N		10	1/4	9/16x18	7.1	5/8	26.9	27.7
	10MJ-MRT-6N		10	3/8	9/16x18	7.5	11/16	29	31
	10MJ-MRT-8N		10	1/2	9/16x18	7.5	7/8	31.2	37.3
	12MJ-MRT-4N		12	1/4	3/4x16	7.1	13/16	31.8	31
	12MJ-MRT-6N		12	3/8	3/4x16	9.5	13/16	31.8	31
	12MJ-MRT-8N		12	1/2	3/4x16	9.9	7/8	33.7	37.3
	12MJ-MRT-12N		12	3/4	3/4x16	9.9	1-1/8	36	40.4
	16MJ-MRT-6N		16	3/8	7/8x14	9.5	15/16	36.8	32.5
	16MJ-MRT-8N		16	1/2	7/8x14	11.9	15/16	36.8	37.3
	16MJ-MRT-12N		16	3/4	7/8x14	12.3	1-1/8	38.9	40.4
	18MJ-MRT-8N		18	1/2	1-1/16x12	11.9	1-1/8	41	40.4
	18MJ-MRT-12N		18	3/4	1-1/16x12	15.5	1-1/8	41	40.4
	20MJ-MRT-12N		20	3/4	1-3/16x12	18.3	1-1/4	45.7	42.9
	25MJ-MRT-12N		25	3/4	1-5/16x12	18.3	1-3/8	46	45.2
	25MJ-MRT-16N		25	1	1-5/16x12	21.5	1-3/8	46	50
