Products

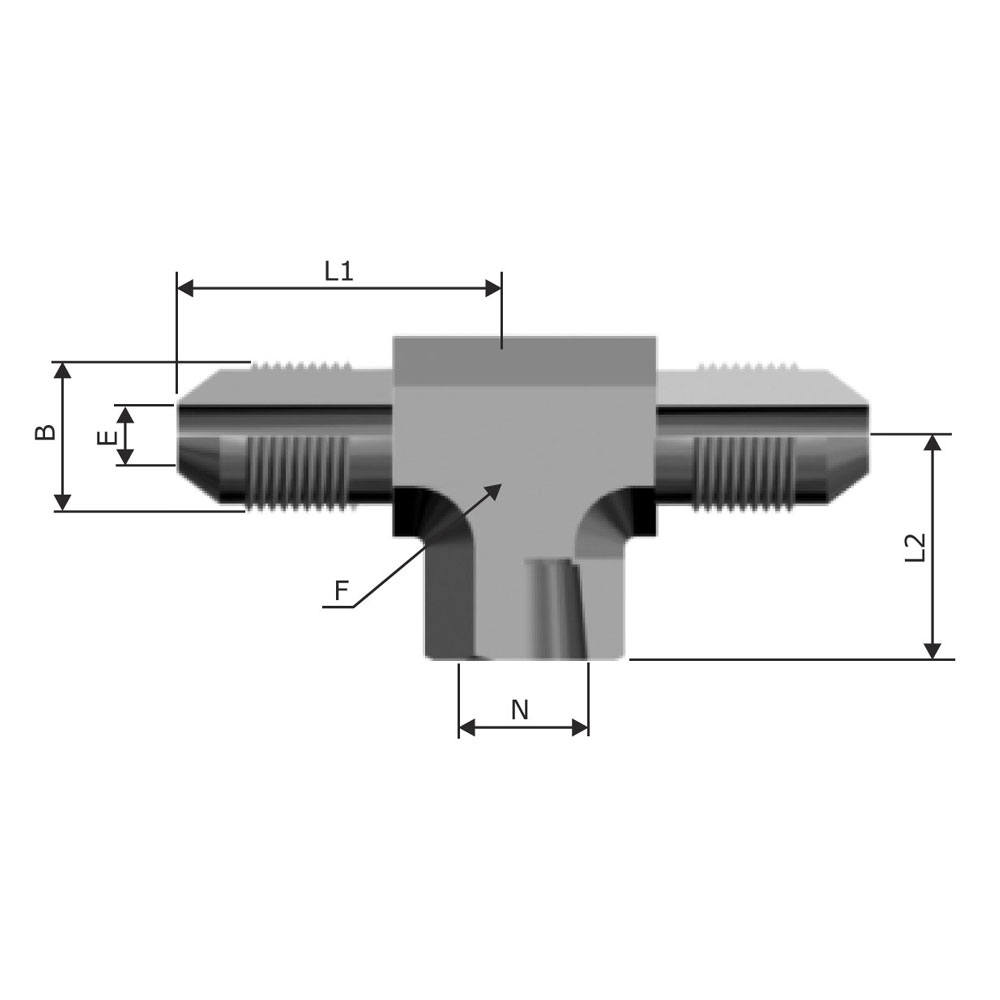

	Part No.(HAVI)	Quantity	Tube OD (T) inch	Thread (P) NPT	B(UNF)	E	F(Hex)	L1	L2
	2J-FBT-2N		1/8	1/8	5/16x24	0.062	9/16	1	0.66
	3J-FBT-2N		3/16	1/8	3/8x24	0.125	9/16	1.03	0.66
	4J-FBT-2N		1/4	1/8	7/16x20	0.172	9/16	1.08	0.66
	4J-FBT-4N		1/4	1/4	7/16x20	0.172	3/4	1.22	0.88
	5J-FBT-2N		5/16	1/8	1/2x20	0.234	9/16	1.08	0.66
	5J-FBT-4N		5/16	1/4	1/2x20	0.234	3/4	1.13	0.88
	6J-FBT-2N		3/8	1/8	9/16x18	0.297	5/8	1.23	0.67
	6J-FBT-4N		3/8	1/4	9/16x18	0.297	3/4	1.23	0.88
	6J-FBT-6N		3/8	3/8	9/16x18	0.297	7/8	1.31	1.02
	8J-FBT-4N		1/2	1/4	3/4x16	0.391	13/16	1.42	1.02
	8J-FBT-6N		1/2	3/8	3/4x16	0.391	7/8	1.42	1.02
	8J-FBT-8N		1/2	1/2	3/4x16	0.391	1-1/16	1.52	1.23
	10J-FBT-8N		5/8	1/2	7/8x14	0.484	1-1/16	1.64	1.23
	12J-FBT-8N		3/4	1/2	1-1/16x12	0.609	1-1/8	1.89	1.35
	12J-FBT-12N		3/4	3/4	1-1/16x12	0.609	1-3/8	1.89	1.36
	14J-FBT-12N		7/8	3/4	1-3/16x12	0.719	1-3/8	1.86	1.42
	16J-FBT-16N		1	1	1-5/16x12	0.844	1-5/8	2.17	1.63
