Product Name - Female Run Tee (JIC x JIC x NPTF)

Product Description -
  • Female Run Tee (JIC x JIC x NPTF) - (SAE 070426) (For Imperial Tube)

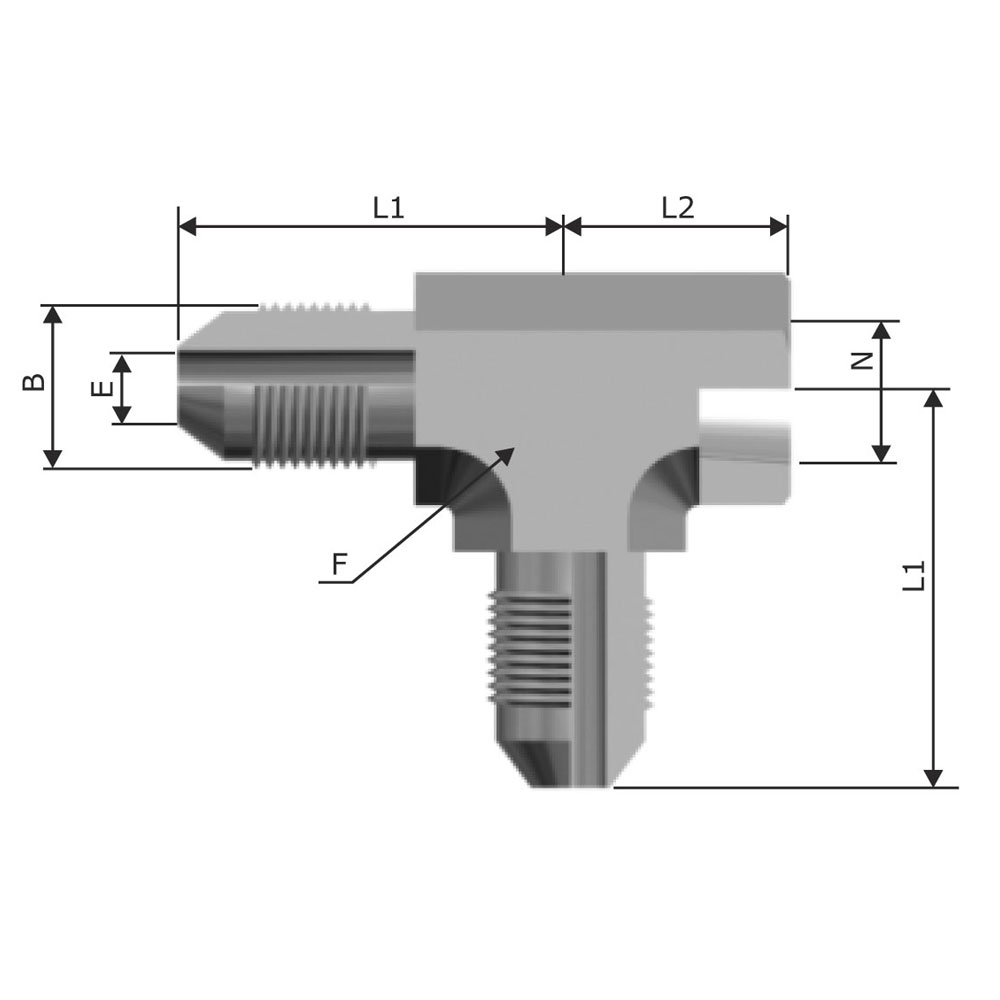

Part No.(HAVI) Quantity Tube OD (T) inch Thread (P) NPT B(UNF) E F(Hex) L1 L2
2J-FRT-2N 1/8 1/8 5/16x24 0.062 9/16 1 0.66
3J-FRT-2N 3/16 1/8 3/8x24 0.125 9/16 1.03 0.66
4J-FRT-2N 1/4 1/8 7/16x20 0.172 9/16 1.08 0.66
4J-FRT-4N 1/4 1/4 7/16x20 0.172 3/4 1.22 0.88
5J-FRT-2N 5/16 1/8 1/2x20 0.234 9/16 1.08 0.66
5J-FRT-4N 5/16 1/4 1/2x20 0.234 3/4 1.13 0.88
6J-FRT-2N 3/8 1/8 9/16x18 0.297 5/8 1.23 0.67
6J-FRT-4N 3/8 1/4 9/16x18 0.297 3/4 1.23 0.88
6J-FRT-6N 3/8 3/8 9/16x18 0.297 7/8 1.31 1.02
8J-FRT-4N 1/2 1/4 3/4x16 0.391 13/16 1.42 1.02
8J-FRT-6N 1/2 3/8 3/4x16 0.391 7/8 1.42 1.02
8J-FRT-8N 1/2 1/2 3/4x16 0.391 1-1/16 1.52 1.23
10J-FRT-8N 5/8 1/2 7/8x14 0.484 1-1/16 1.64 1.23
12J-FRT-8N 3/4 1/2 1-1/16x12 0.609 1-1/8 1.89 1.35
12J-FRT-12N 3/4 3/4 1-1/16x12 0.609 1-3/8 1.89 1.36
14J-FRT-12N 7/8 3/4 1-3/16x12 0.719 1-3/8 1.86 1.42
16J-FRT-16N 1 1 1-5/16x12 0.844 1-5/8 2.17 1.63
