Product Name - Swivel Elbow (JIC x FJIC Swivel)

Product Description -

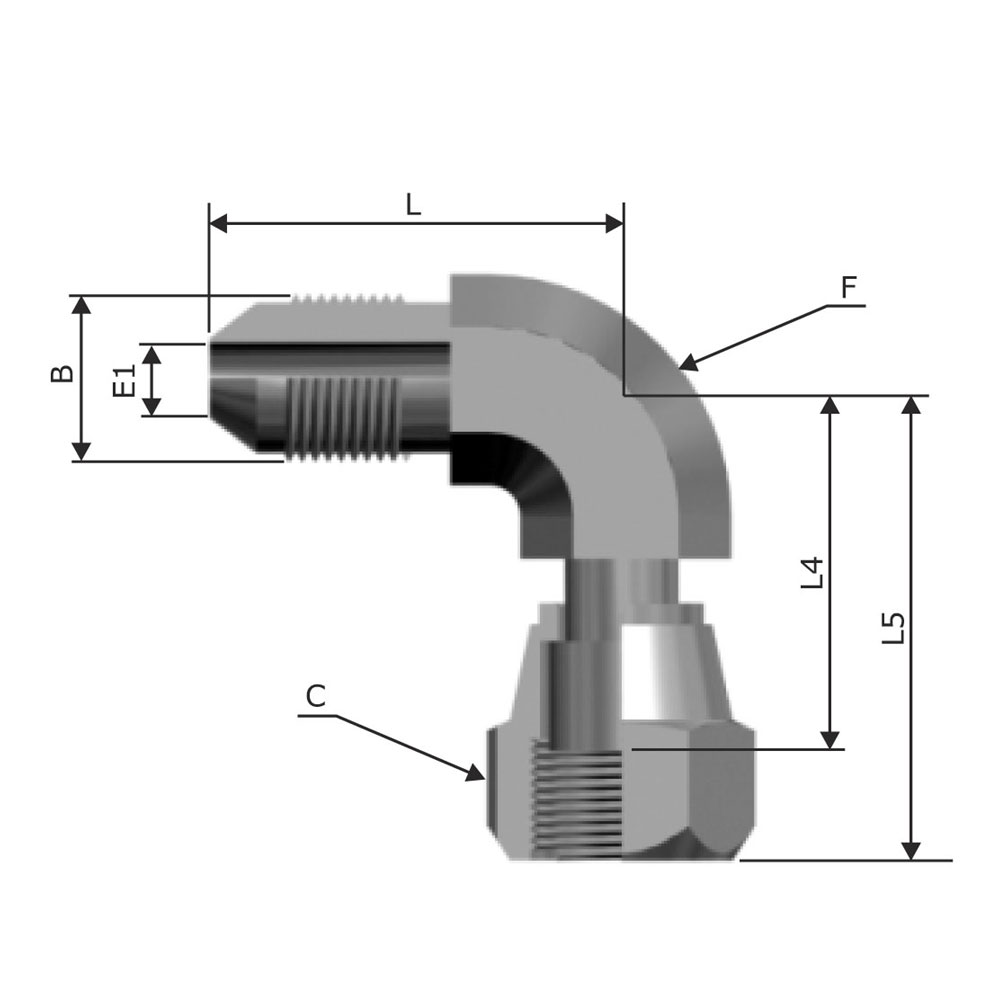

  • Swivel Elbow (JIC x FJIC Swivel) - (SAE 070221) For Imperial Tube

Part No.(HAVI) Quantity Tube OD (T) inch B(UNF) C-Hex E F(Hex) L L4 L5
2J-SE-2SJ 1/8 5/16x24 39/89 0.062 39/89 0.77 0.66 0.97
3J-SE-3SJ 3/16 3/8x24 1/ 2 0.125 39/89 0.83 0.67 1.00
4J-SE-4SJ 1/4 7/16x20 49/87 0.172 39/89 0.89 0.65 1.00
5J-SE-5SJ 5/16 1/2x20 5/ 8 0.234 50/89 0.95 0.68 1.06
6J-SE-6SJ 3/8 9/16x18 64/93 0.297 50/89 1.06 0.87 1.25
8J-SE-8SJ 1/2 3/4x16 7/ 8 0.391 3/ 4 1.25 0.95 1.38
10J-SE-10SJ 5/ 8 7/8x14 1 0.484 7/ 8 1.45 1.12 1.62
12J-SE-12SJ 3/4 1-1/16x12 1 1/ 4 0.609 1 6/97 1.66 1.18 1.75
14J-SE-14SJ 7/ 8 1-3/16x12 1 3/ 8 0.719 1 29/93 1.8 1.20 1.78
16J-SE-16SJ 1 1-5/16x12 1 1/ 2 0.844 1 29/93 1.81 1.40 2.00
