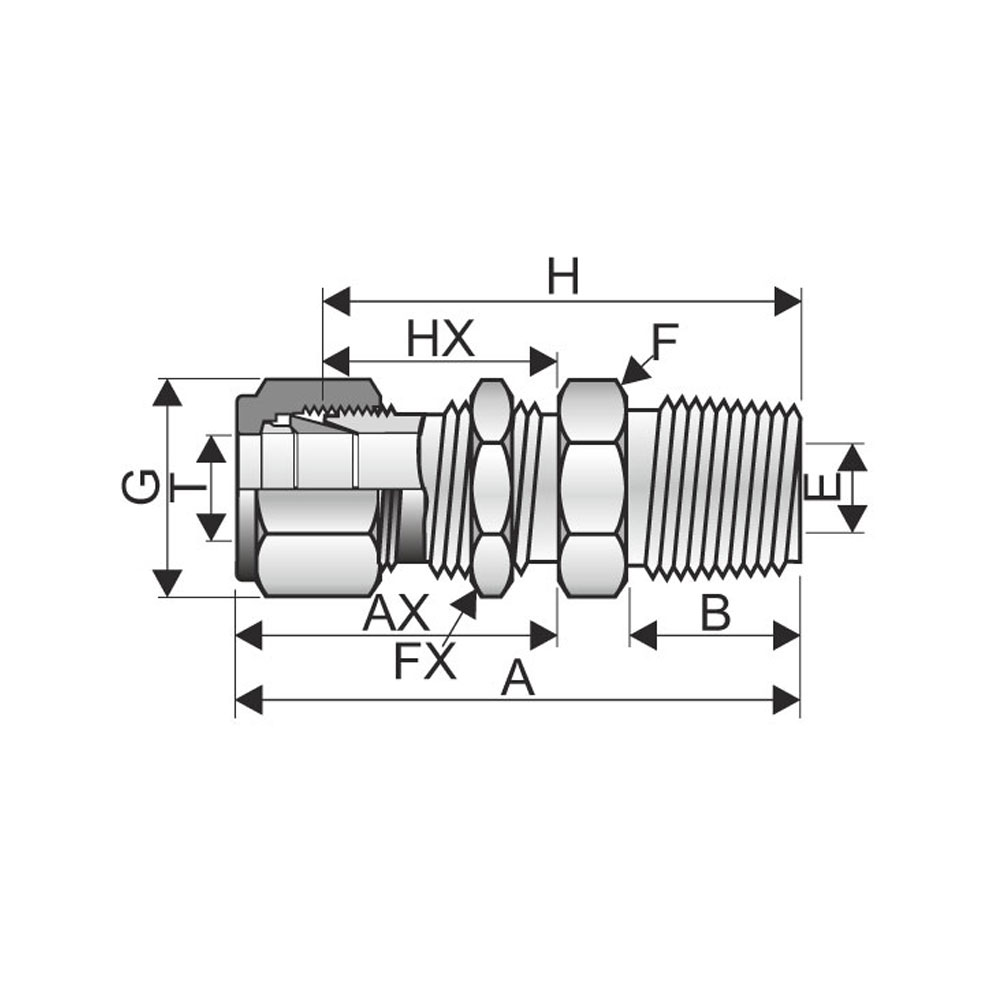

	Part No.(HAVI)	Quantity	Tube OD (T) mm	Thread (P) NPT	A	Ax	B	D	E	F(Hex)	Fx	G	H	Hx
	6MBMC2N		6	1/8	49.6	33.7	9.5	15.3	4.8	14	14	14	46.2	26.2
	6MBMC4N		6	1/4	53.6	33.6	14.2	15.3	4.8	16	16	14	44.8	28.5
	8MBMC2N		8	1/8	52.3	36	14.3	16.2	4.8	16	16	16	50	28.5
	8MBMC4N		8	1/4	57.5	36	14.3	16.2	6.4	16	16	16	50.8	29.4
	10MBMC4N		10	1/4	58.4	37	14.3	17.2	7.9	19	19	19	50.8	29.4
	10MBMC6N		10	3/8	58.4	37	14.3	17.2	7.9	19	19	19	50.8	29.4
	10MBMC8N		10	1/2	63.1	37	19	17.2	7.9	22	22	19	53.2	31.8
	12MBMC4N		12	1/4	63.3	41.9	14.3	22.8	7.1	25	25	22	54.4	31.8
	12MBMC6N		12	3/8	64.5	41.9	14.3	22.8	9.5	25	25	22	57.4	31.8
	12MBMC8N		12	1/2	68.8	41.9	19	22.8	9.5	25	25	22	57.4	31.8
