Product Name - SAEON Male Branch Tee (JIC x SAEON x JIC)

Product Description -
  • SAEON Male Branch Tee (JIC x SAEON x JIC) - (SAE 070429) For Imperial Tube

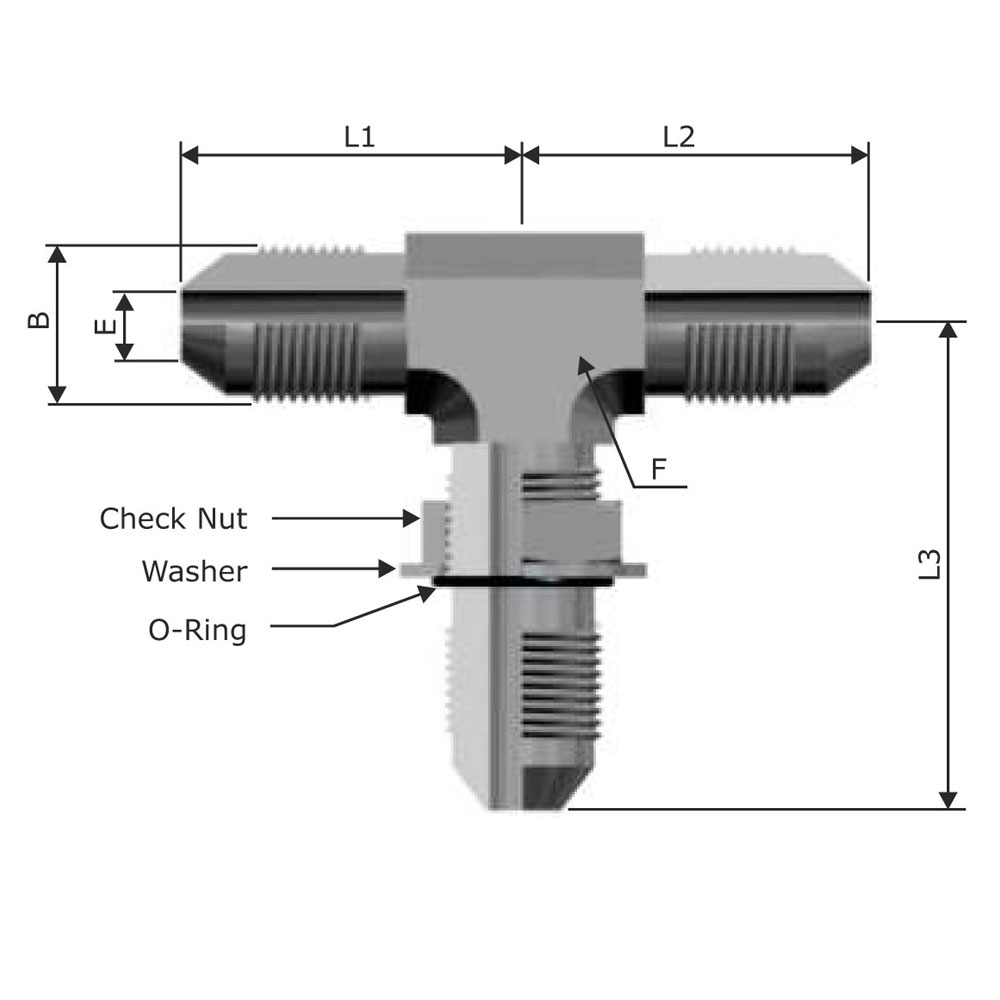

Part No.(HAVI) Quantity Tube OD (T) inch B(UNF) C-Hex E F(Hex) L1 L2 L3
3J-BT-3SAEON 3/16 3/8x24 1/ 2 0.125 7/16 0.83 0.83 0.94
4J-BT-4SAEON 1/4 7/16x20 49/87 0.172 7/16 0.89 0.89 1.03
6J-BT-6SAEON 3/ 8 9/16x18 64/93 0.297 50/89 1.06 1.06 1.25
8J-BT-8SAEON 1/ 2 3/4x16 7/ 8 0.391 3/ 4 1.25 1.25 1.45
12J-BT-12SAEON 3/ 4 1-1/16x12 1 1/ 4 0.609 1 6/97 1.66 1.66 1.94
16J-BT-16SAEON 1 1-5/16x12 1 1/ 2 0.844 1 29/93 1.81 1.81 2.05
