Product Name - SAEON Male Run Tee (JIC x JIC x SAEON)

Product Description -

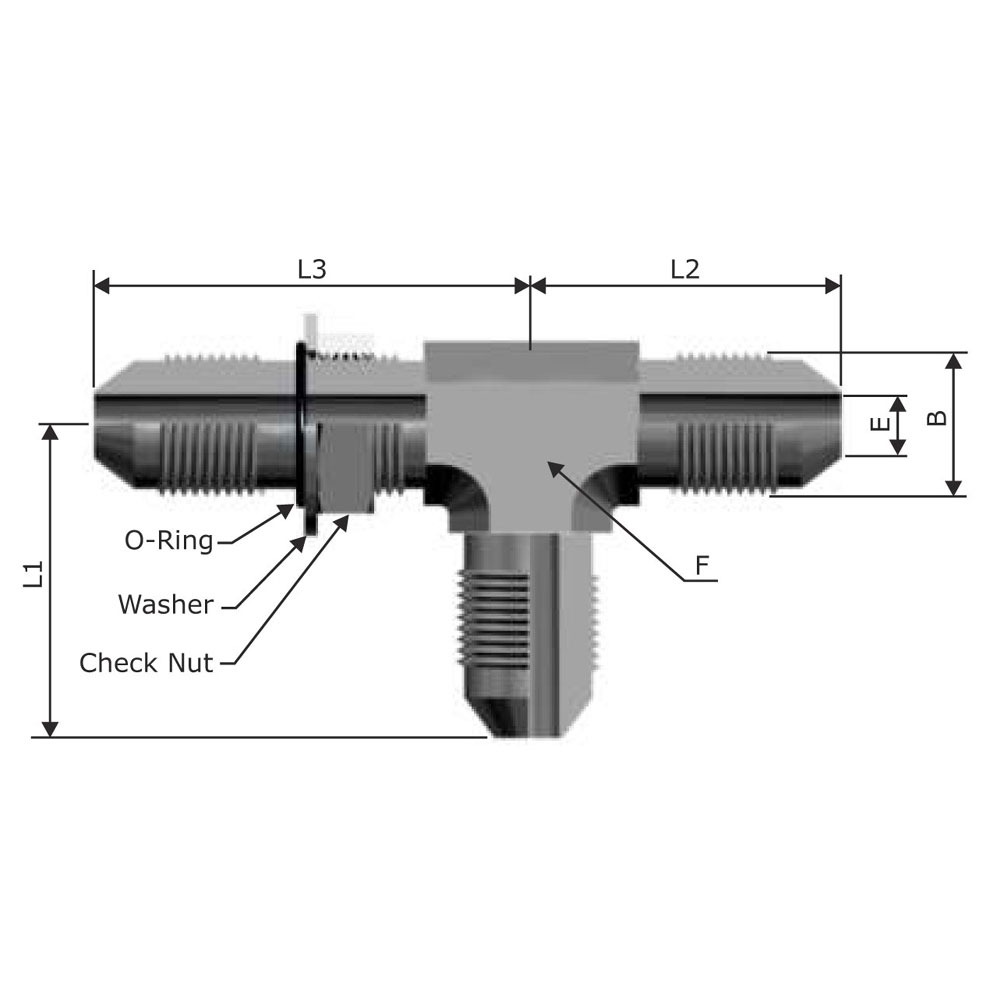

  • SAEON Male Run Tee (JIC x JIC x SAEON) - (SAE 070428) For Imperial Tube

Part No.(HAVI) Quantity Tube OD (T) inch B(UNF) E F(Hex) L1 L2 L3
3J-SRT-3SAEON 3/16 3/8x24 0.125 7/16 0.83 0.83 0.94
4J-SRT-4SAEON 1/4 7/16x20 0.172 7/16 0.89 0.89 1.03
6J-SRT-6SAEON 3/ 8 9/16x18 0.297 9/16 1.06 1.06 1.25
8J-SRT-8SAEON 1/ 2 3/4x16 0.391 3/4 1.25 1.25 1.45
12J-SRT-12SAEON 3/ 4 1-1/16x12 0.609 1 6/97 1.66 1.66 1.94
16J-SRT-16SAEON 1 1-5/16x12 0.844 1 29/93 1.81 1.81 2.05
