Product Name - Swivel Elbow Connector (NPTF(M) x NPSM)

Product Description -
  • Swivel Elbow Connector (NPTF(M) x NPSM) - (SAE 140230) For Imperial Tube

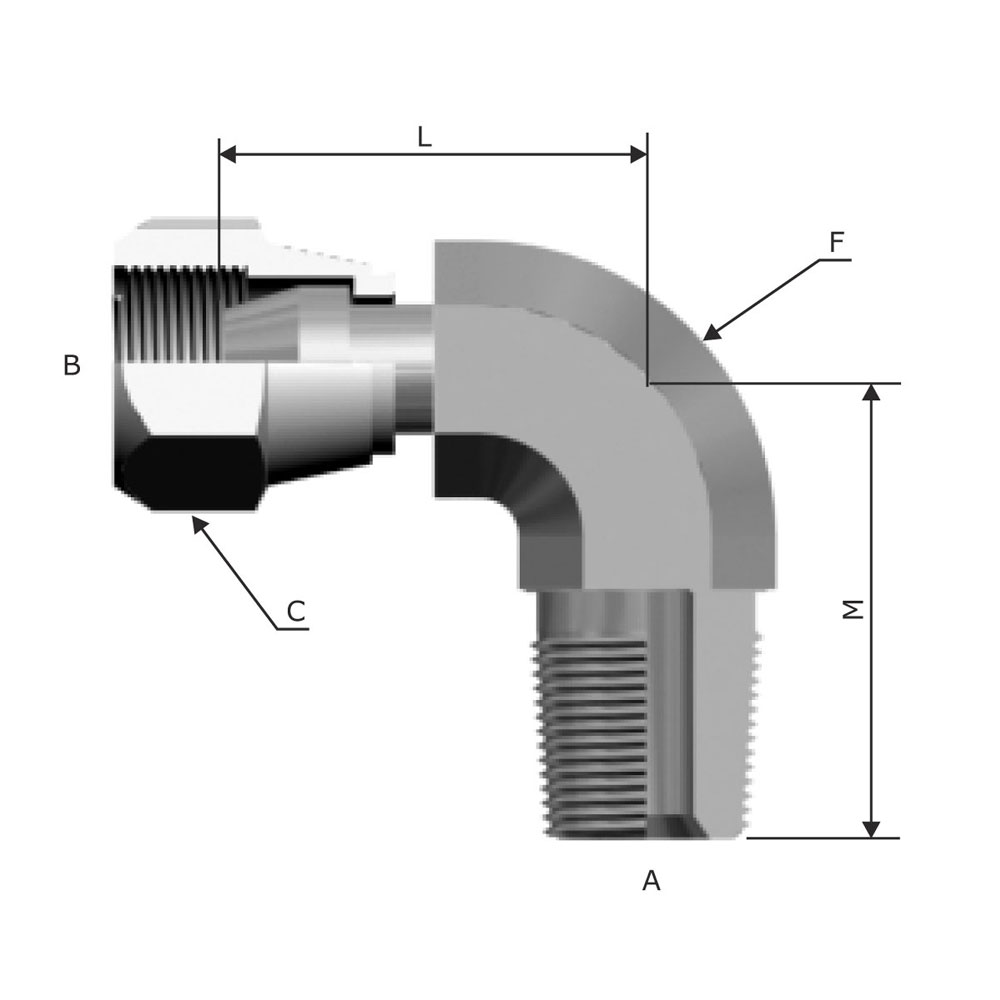

Part No.(HAVI) Quantity A$NPTF(M) B$NPSM C-Hex F(Hex) L M
2NFM-SEC-2NPSF 1/8x27 1/8x27 0.56 0.56 0.94 0.7
2NFM-SEC-4NPSF 1/8x27 1/4x18 0.69 0.69 1.06 0.79
4NFM-SEC-2NPSF 1/4x18 1/8x27 0.56 0.69 1.19 0.76
4NFM-SEC-4NPSF 1/4x18 1/4x18 0.69 0.69 1.19 0.79
4NFM-SEC-6NPSF 1/4x18 3/8x18 0.88 0.88 1.5 0.95
4NFM-SEC-8NPSF 1/4x18 1/2x14 1 1 1.56 1
6NFM-SEC-4NPSF 3/8x18 1/4x18 0.69 0.88 1.5 0.88
6NFM-SEC-6NPSF 3/8x18 3/8x18 0.88 0.88 1.5 0.95
6NFM-SEC-8NPSF 3/8x18 1/2x14 1 1 1.56 1
8NFM-SEC-4NPSF 1/2x14 1/4x18 0.69 1 1.81 0.94
8NFM-SEC-6NPSF 1/2x14 3/8x18 0.88 1 1.81 1.01
8NFM-SEC-8NPSF 1/2x14 1/2x14 1 1 1.81 1
8NFM-SEC-12NPSF 1/2x14 3/4x14 1.25 1.25 2 1.26
12NFM-SEC-6NPSF 3/4x14 3/8x18 0.88 1.25 2 1.13
12NFM-SEC-8NPSF 3/4x14 1/2x14 1 1.25 2 1.13
12NFM-SEC-12NPSF 3/4x14 3/4x14 1.25 1.25 2 1.26
12NFM-SEC-16NPSF 3/4x14 1-11x1/2 1.5 1.5 2.19 1.4
16NFM-SEC-8NPSF 1-11x1/2 1/2x14 1 1.5 2.38 1.25
16NFM-SEC-12NPSF 1-11x1/2 3/4x14 1.25 1.5 2.38 1.39
16NFM-SEC-16NPSF 1-11x1/2 1-11x1/2 1.5 1.5 2.38 1.4
