Product Name -
Hex Male Plug (SAEO)
Product Description -

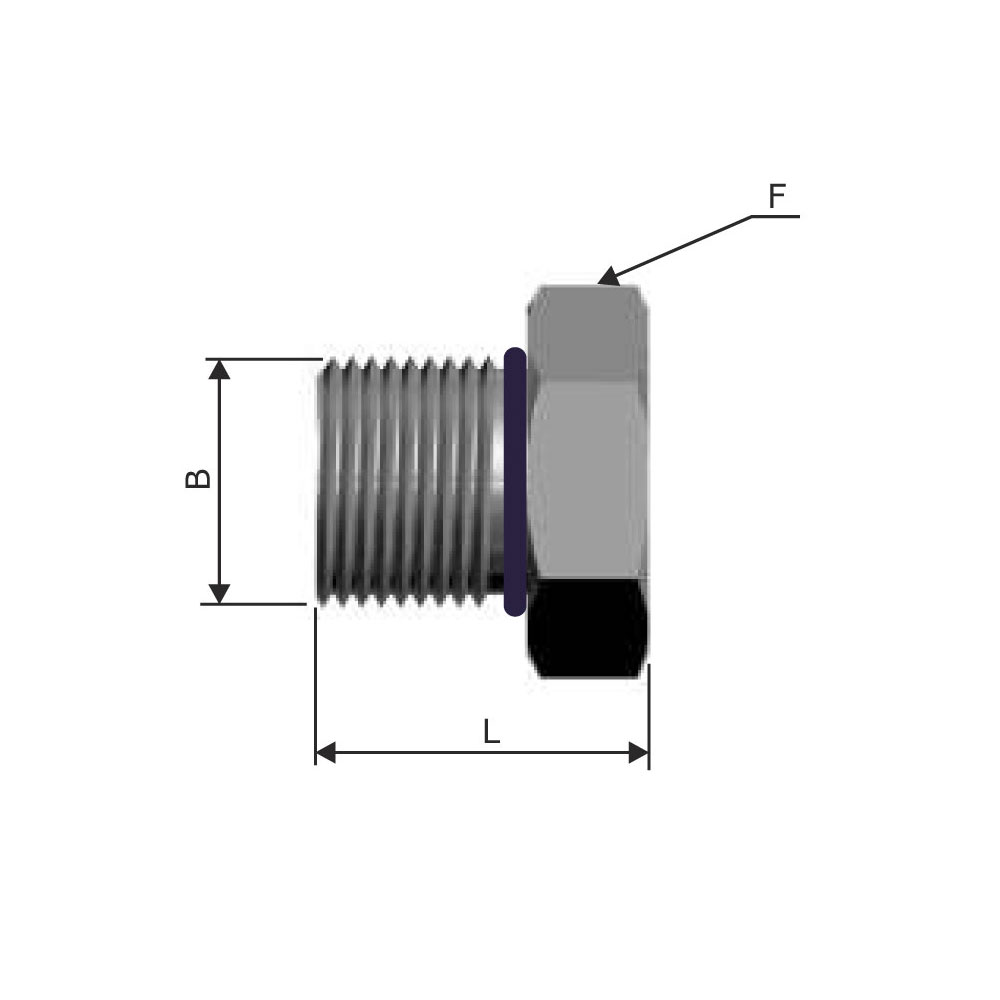

Hex Male Plug (SAEO) - (SAE 070109 A) For Metric Tube
Part No.(HAVI)
Quantity
Tube OD (T) mm
B(UNF)
C-Hex
D
E
3M-HMP-OR
3
5/16x24
7/16
2.3622
15.24
5M-HMP-OR
5
3/8x24
1/2
3.175
15.24
6M-HMP-OR
6
7/16x20
9/16
5.1562
17.018
8M-HMP-OR
8
1/2x20
5/8
5.9436
17.018
10M-HMP-OR
10
9/16x18
11/16
7.5438
18.542
12M-HMP-OR
12
3/4x16
7/8
10.7188
20.32
16M-HMP-OR
16
7/8x14
1
12.7
23.622
19M-HMP-OR
19
1-1/16x12
1 1/4
16.6624
27.686
22M-HMP-OR
22
1-3/16x12
1 3/8
18.2372
27.686
25M-HMP-OR
25
1-5/16x12
1 1/2
22.225
28.448
×
